Pinpoint Trigge
rs
Choosing a Trigger Type
Your instrume
nt allows you to m odify basic trigger parameters from the front panel or set up more advanced triggers in
the Trigger Setup control w indow.
NOTE. Some trigger type selections are not available on some instruments.

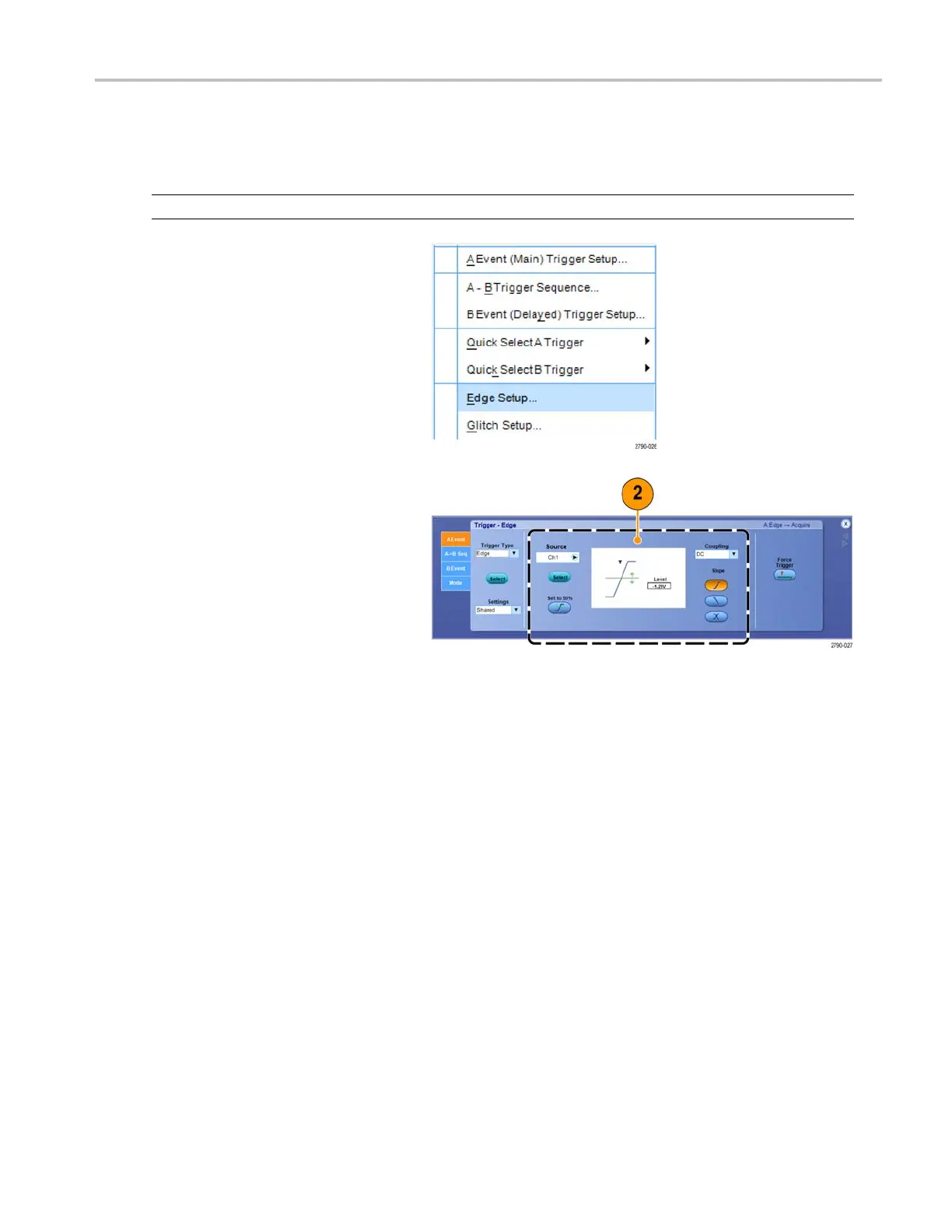

1. Select Trig > Edge Setup.
2. Set the so
urce, slope, coupling, and
mode using the setup menu.
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 69
