Tektronix DPO7000 Series User Manual

Analyzing Wavef
orms

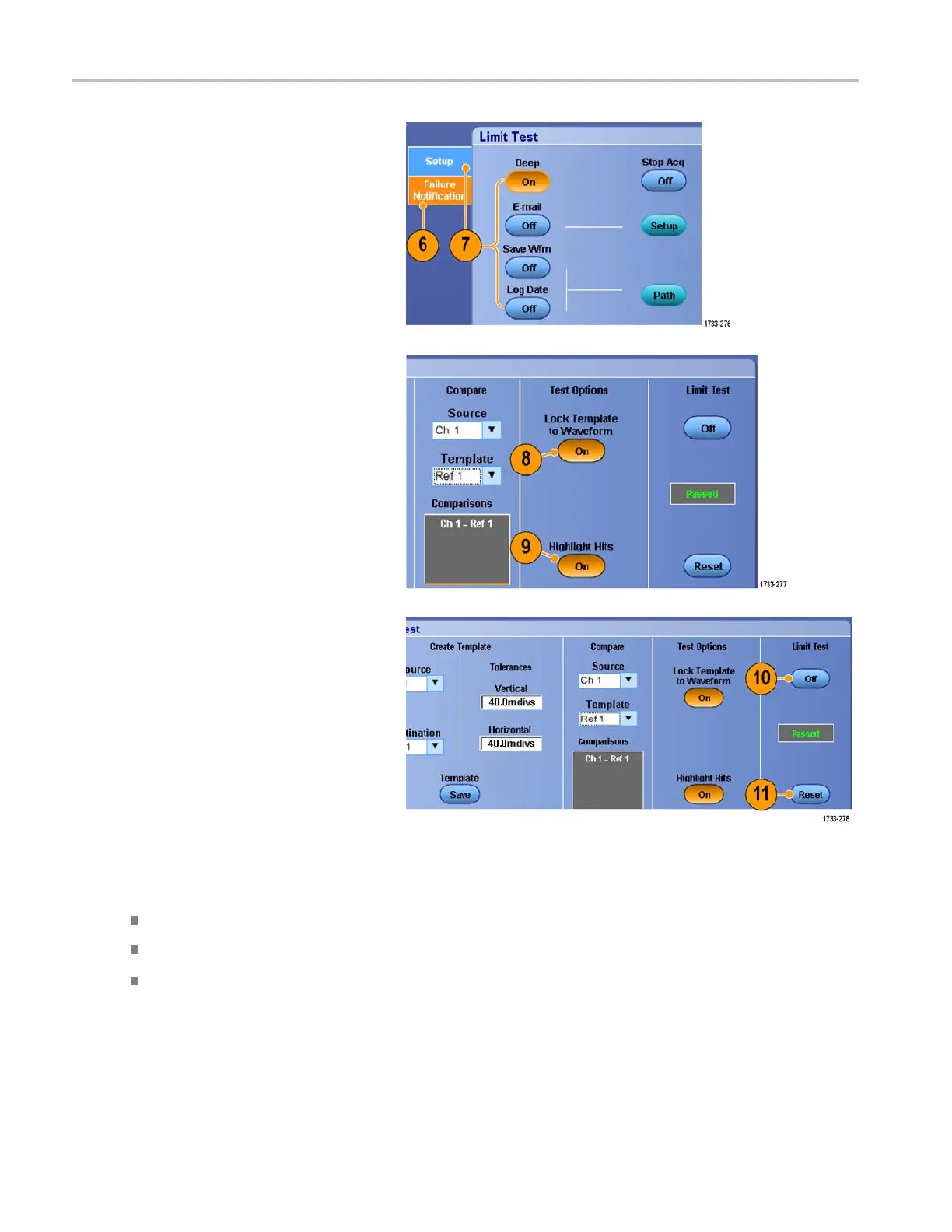

6. Click Failure Notification to set up the
Failure Notification.
7. Select the failure notification(s), and
then click Set
up to return to the setup
control window.
8. Click Lock Template to Waveform On to
lock the ve
rtical scale o r position of the
template to that of the source waveform.
9. Click Highlight Hits On to show points
that fall outside the template in a
different
color.
10. Toggle Limit Test to On to start the test.
11. Click Reset to clear all violations and
reset the test.
Quick Tips
Useactiveorsavedwaveformstocreatealimittesttemplate.
Using Average acquisition mode will create a smoother template waveform.
Using Envelope acquisition mode will create a template that allows for occasional overshoots.
136 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual
