Tektronix DPO70000C Series

To Next Page

To Previous Page

Pinpoint trigge

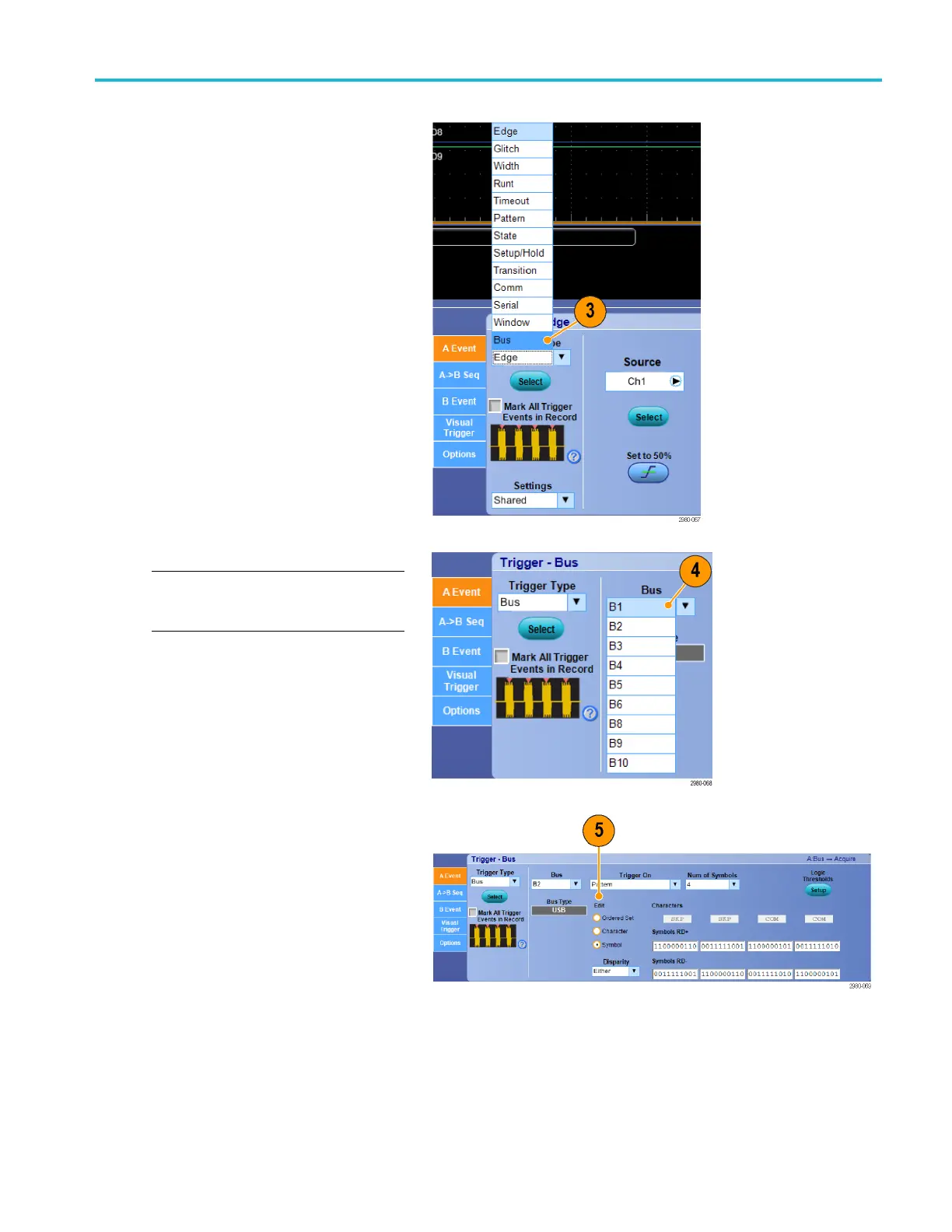

3. Select the Bus Trigger Type.

4. Select the bus to trigger on.

NOTE. Clocked buses will only appear in

the drop down list if the clock source is set

to Ch4.

5. Click

an Edit button and set the pattern

and format that you want to trigger on.

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 81
