P6616 General-Purpose Logic Probe instructions
071-2831-00
Copyright © Tektronix, Inc. All rights r eserved.
Product description

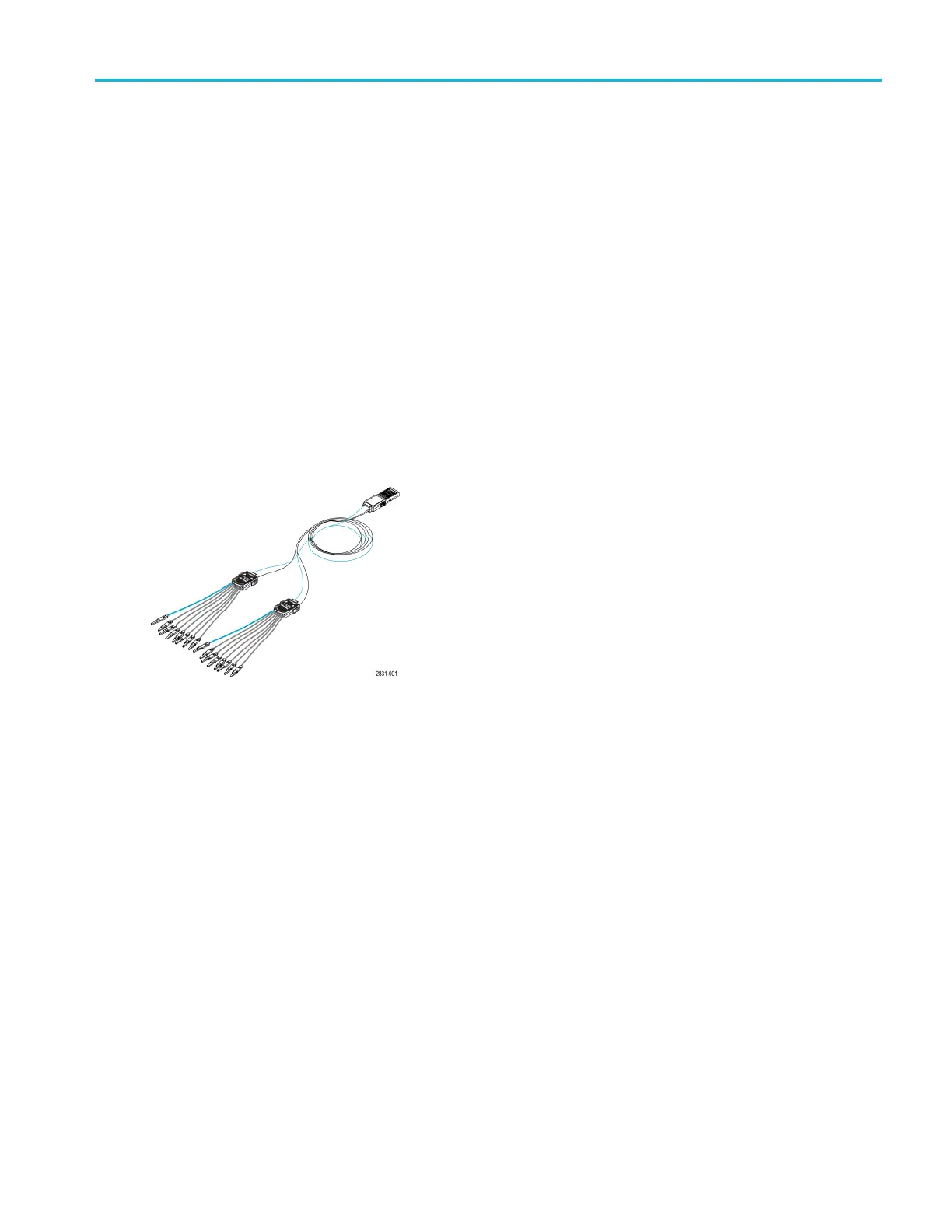

The P6616 general-purpose logic probe connects the Tektronix MSO/DPO5000B Series and MS O4000B Series of
mixed-sig
nal oscilloscopes to digital buses and signals on your target system. The probe contains 16 data channels
split between two lead sets (GROUP 1 and GROUP 2).
The first lead in each set is identified by blue insulation, and the remaining seven leads are gray. All leads include a
ground connection at the tip. You can connect the probe leads separately to the target system, or group the leads together
using the p
robe tip holders.
MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 187
