Saving and recal

ling information

Recalling waveforms

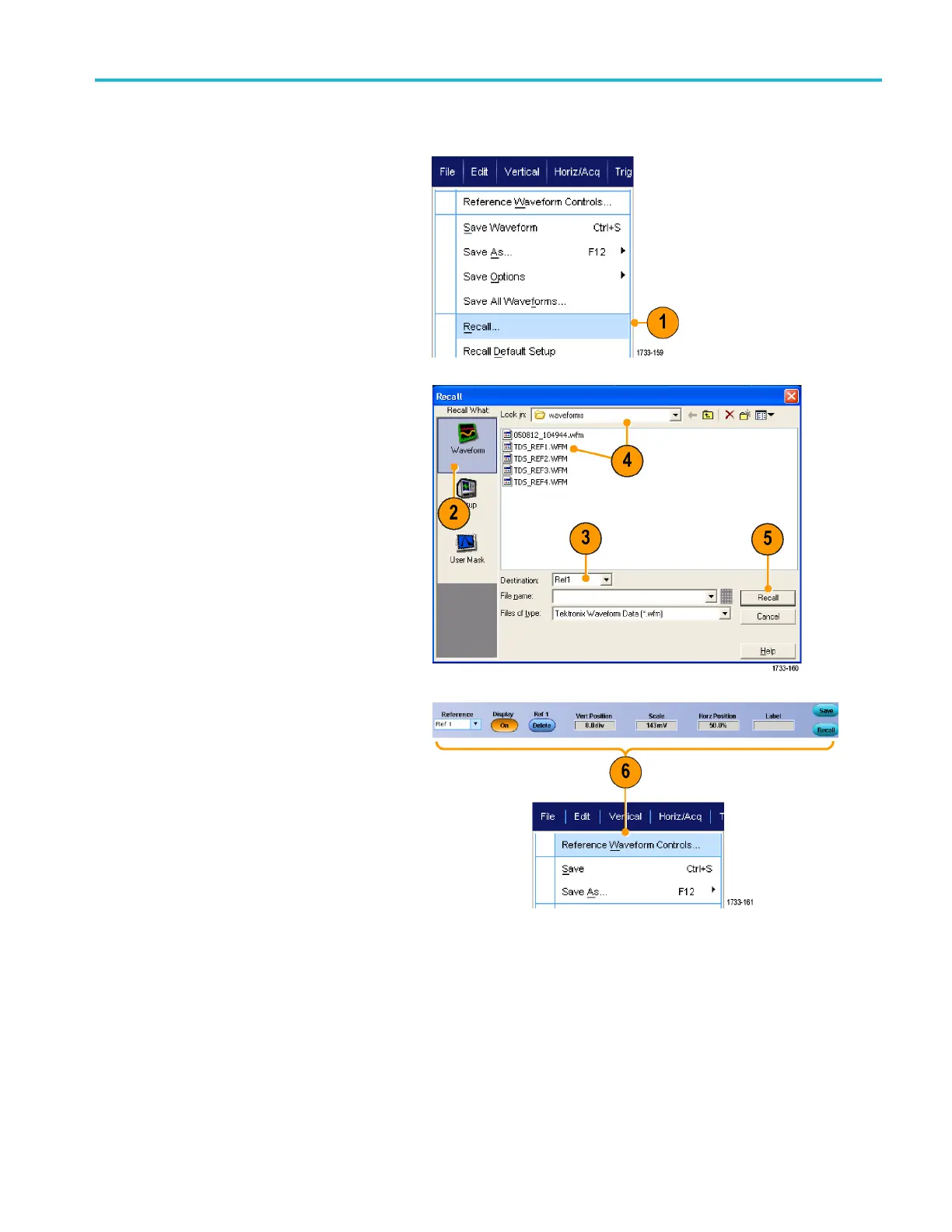

1. Select File > R

ecall....

2. Click Waveform.

3. Select the Destination of the waveform

you are recalling.

4. Select the waveform to recall.

5. Click Recall. Clicking Recall turns on the

reference waveform and activates the

Reference Waveform control window.

6. Use the controls to adjust the Reference

waveform. You c a n als o acces s the

Reference Waveform control window by

selecting File > Reference Waveform

Controls....

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 155
