Appendix D

Connecting the probe to the oscilloscope

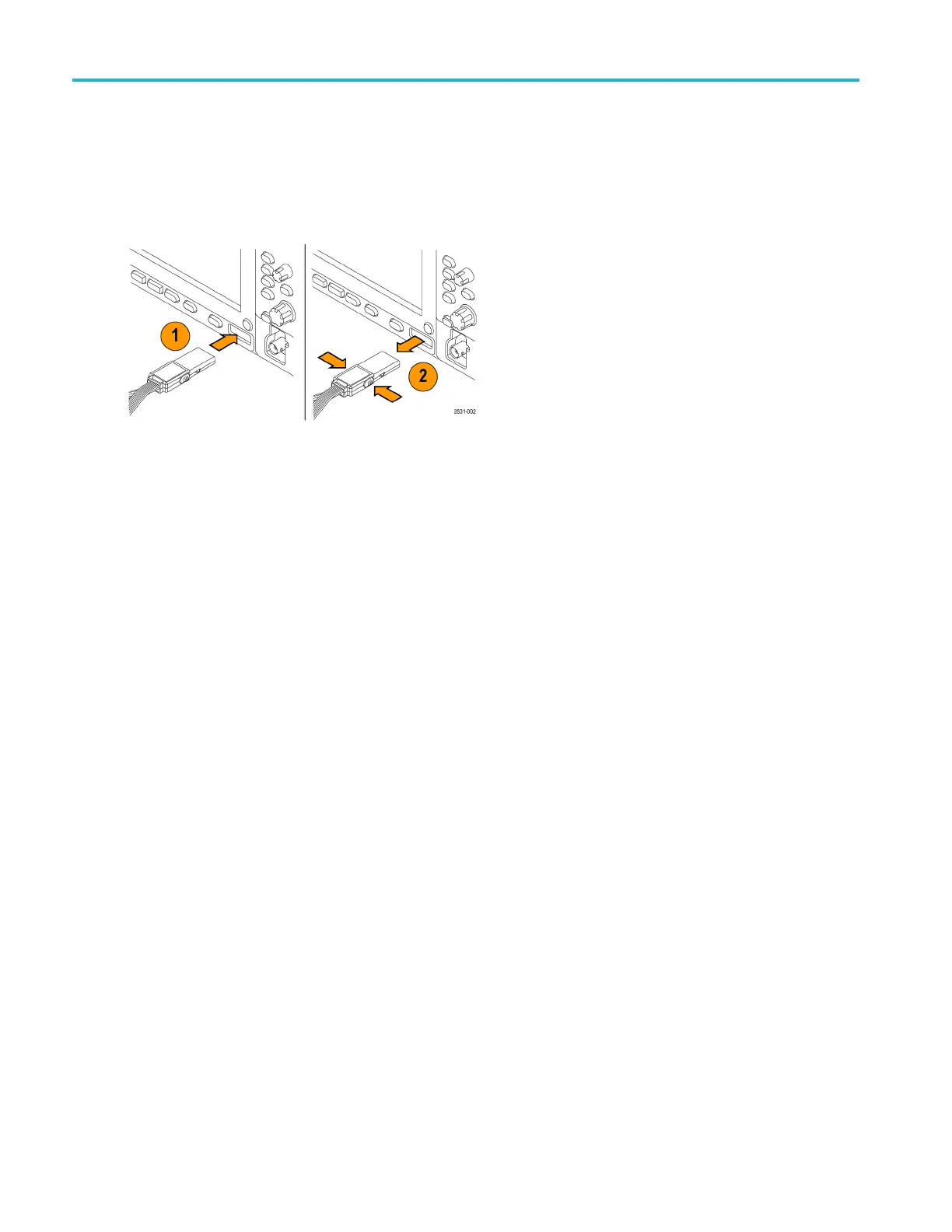

Connect the probe as shown in the illustration below.

1. Insert the probe label-side u p into the connector on the oscilloscope.

2. To remove the probe, squeeze the buttons on the side and pull out the probe.

188 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
