Analyzing wavef

orms

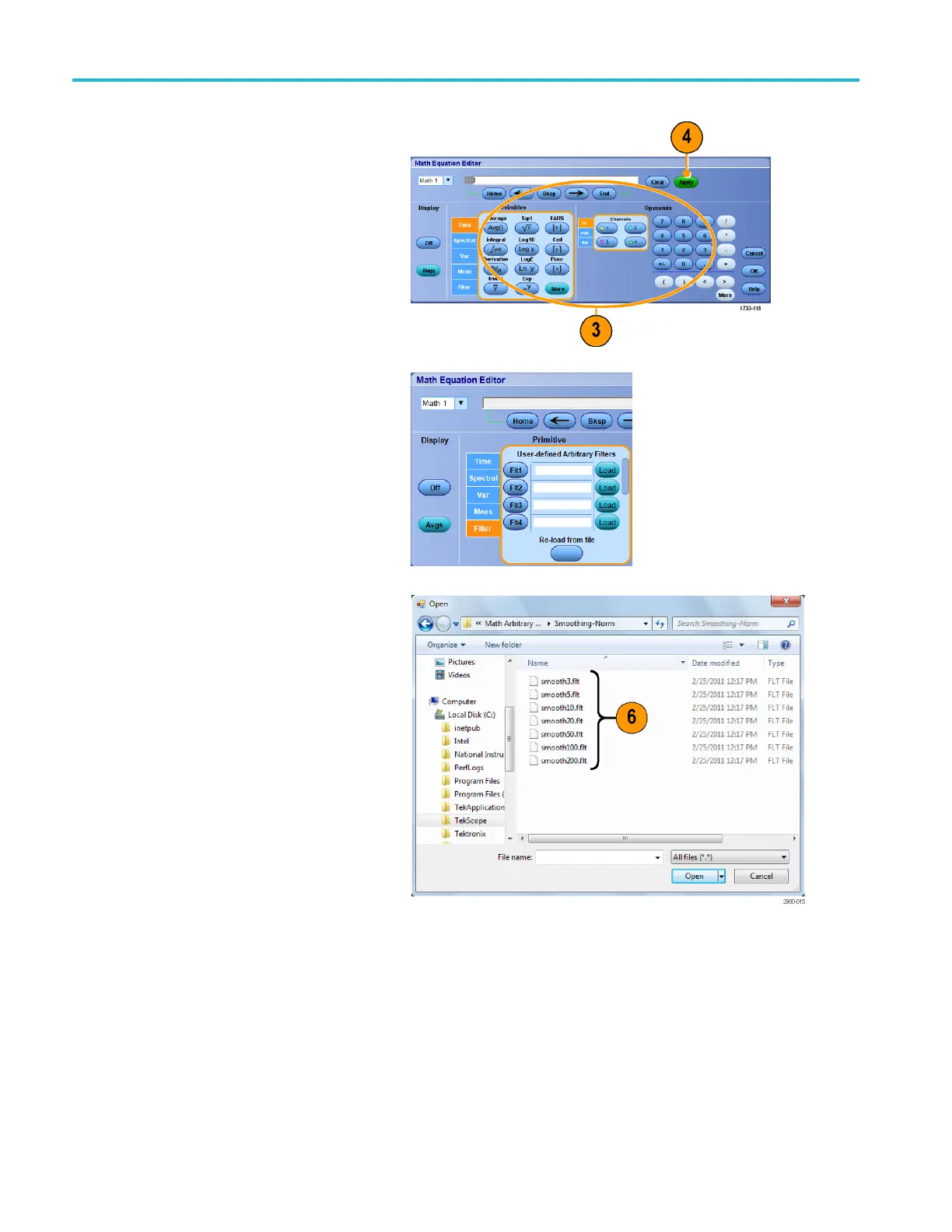

3. Build your advanced math waveform

expression using sources, operators,

constants, me

asurements, variables,

and functions.

4. When you have deﬁned the expression

to your satisfaction, click Apply.

5. To add your

own ﬁlter, c lick the Filter

tab. Click Load.

6. Double click the folder for the ﬁlters you

want to use. Double click the ﬁlter you

want to use.

130 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
