Set up a window trigger

NOTE. Window trigger is not available on MSO/DPO5000B Series instruments.

From the Trig menu, select Window Setup.

Overview. Use the controls in this window to set up the Window trigger parameters.

To use. For information on the controls, click the buttons.

■

Trigger Type

■

Mark All Trigger Events

■

Settings

■

Source

■

Levels

■

Window Event

■

Qualification

■

Pattern

■

Edit Button

NOTE. The Trigger Window screen on DPO and MSO instruments is the same except for the source selection and Trigger if

Window Qualification options. In a DPO Series instrument, the source selection is a drop-down list and the Trigger if Window

Qualification option has Occurs and Logic. In MSO70000C/DX Series the source selection is a drop-down list. The Trigger if

Window Qualification option has Occurs, Logic, and Occurs And.

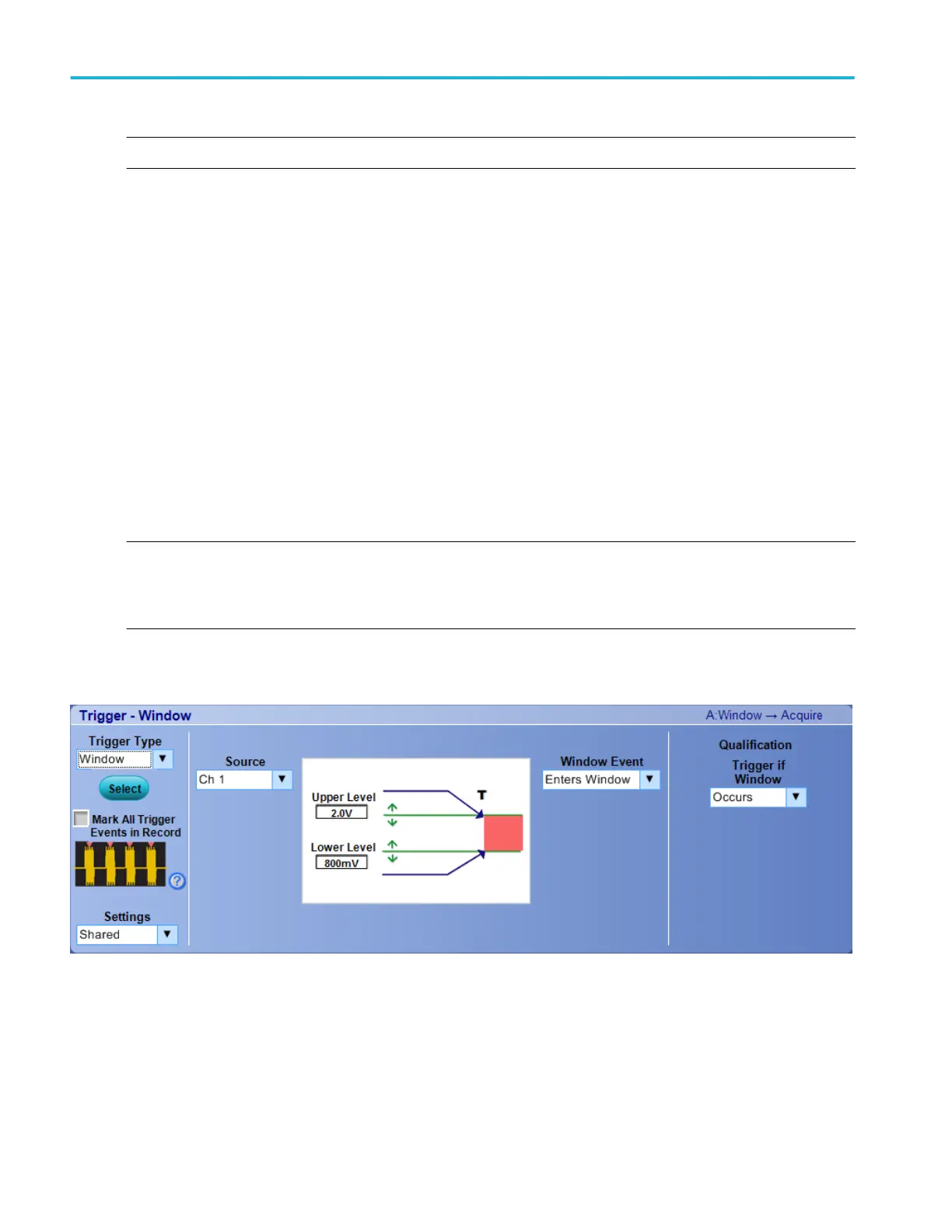

The following Trigger Window screen appears on MSO70000C/DX Series instruments:

Trigger setups
