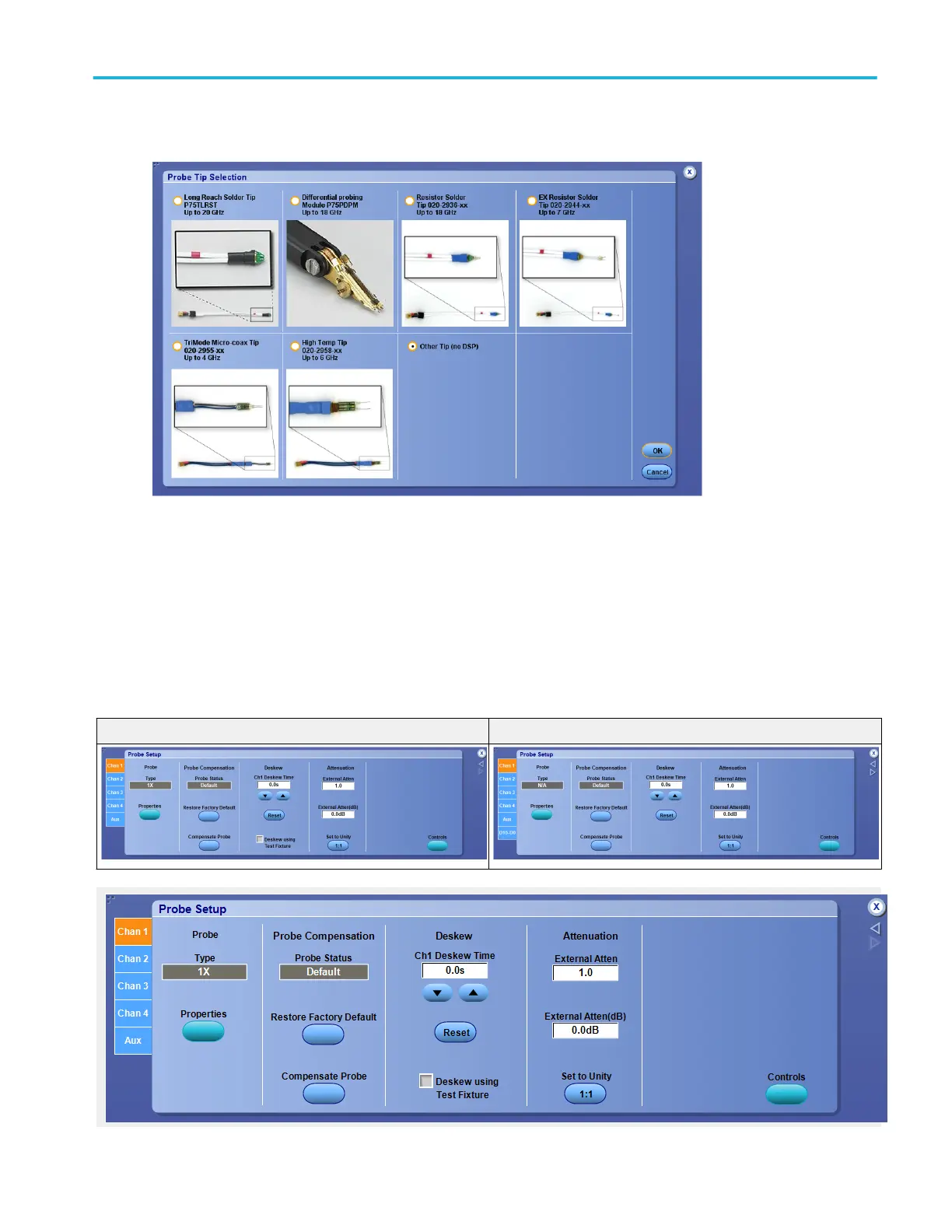

Probe setup control window (Probe deskew)

From the Vertical menu, select Deskew.

Overview

Use the Probe Setup control window to compensate for propagation delays of different length probes connected to the vertical

input channels.

Click for DPO7000C and MSO/DPO5000B instruments: Click for MSO/DPO70000C/DX/SX instruments:

Vertical setups

DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 505
