Start Link Training

To start Link Training do the following steps:

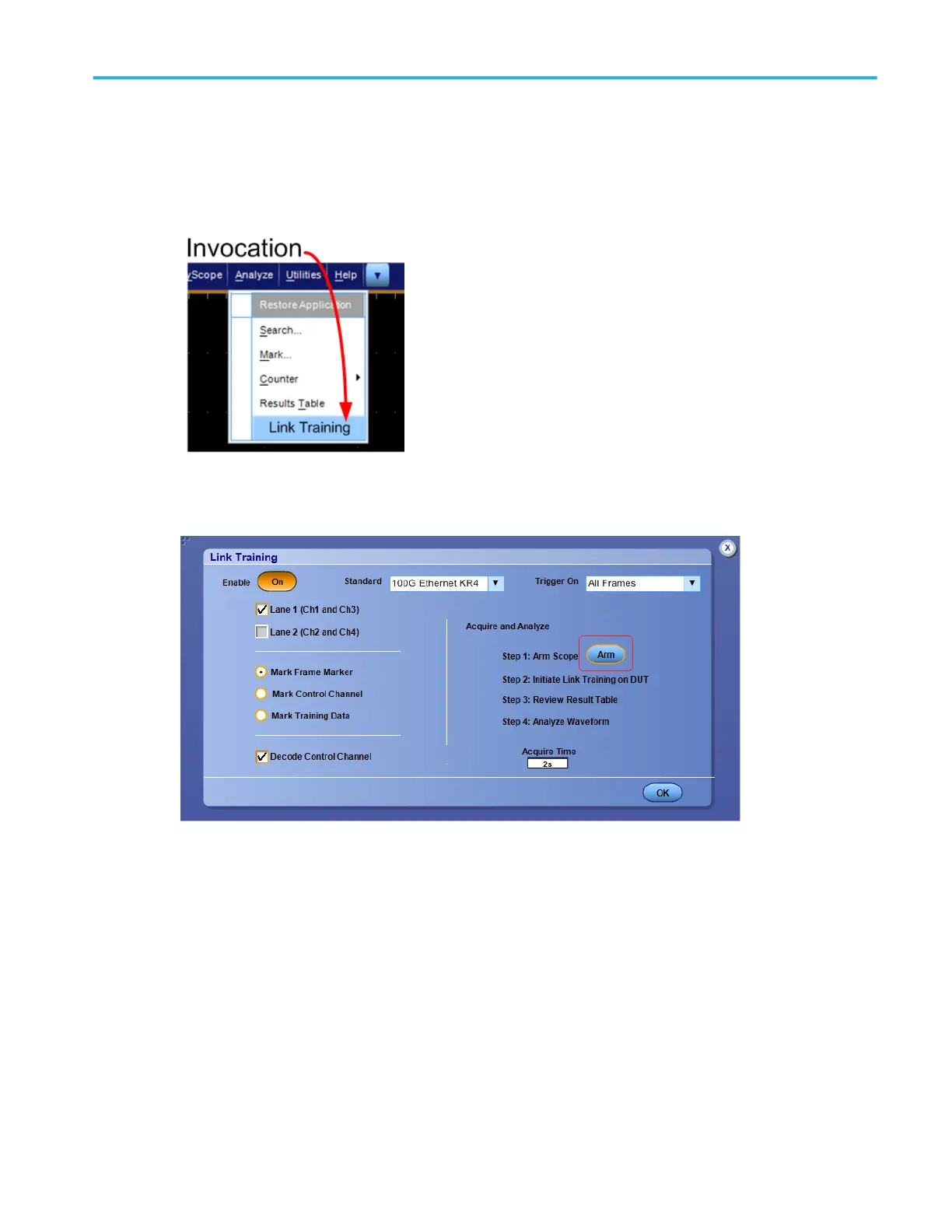

1. From the Menu Bar select Analyze > Link Training.

2. Press the Arm button.

3. Start Link Training on the device under test (DUT).

Starting Link Training on the DUT is DUT-specific, but is typically done from a command line console program.
