Pinpoint trigge

SendingE-MailonTrigger

You must conﬁgure e-mail on event before performing the following procedure. (See page 88, Setting up E-Mail on Event.)

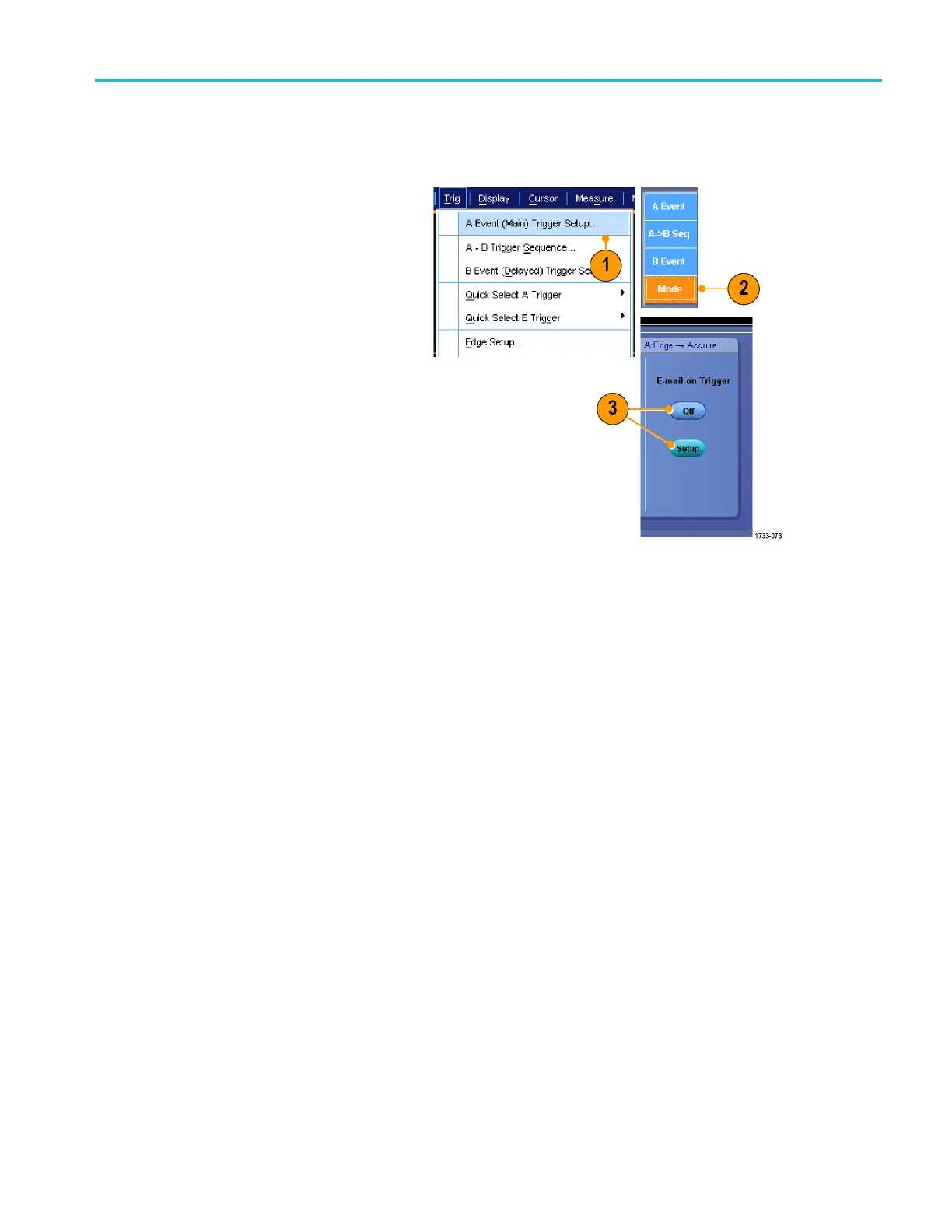

1. Select Trig > A Event (Main) Trigger

Setup....

2. Select the Mode tab.

3. Under E -mail on Trigger, click On,and

then click Setup. (See page 88, Setting

up E-Mail on Event.)

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 87
