MyScope

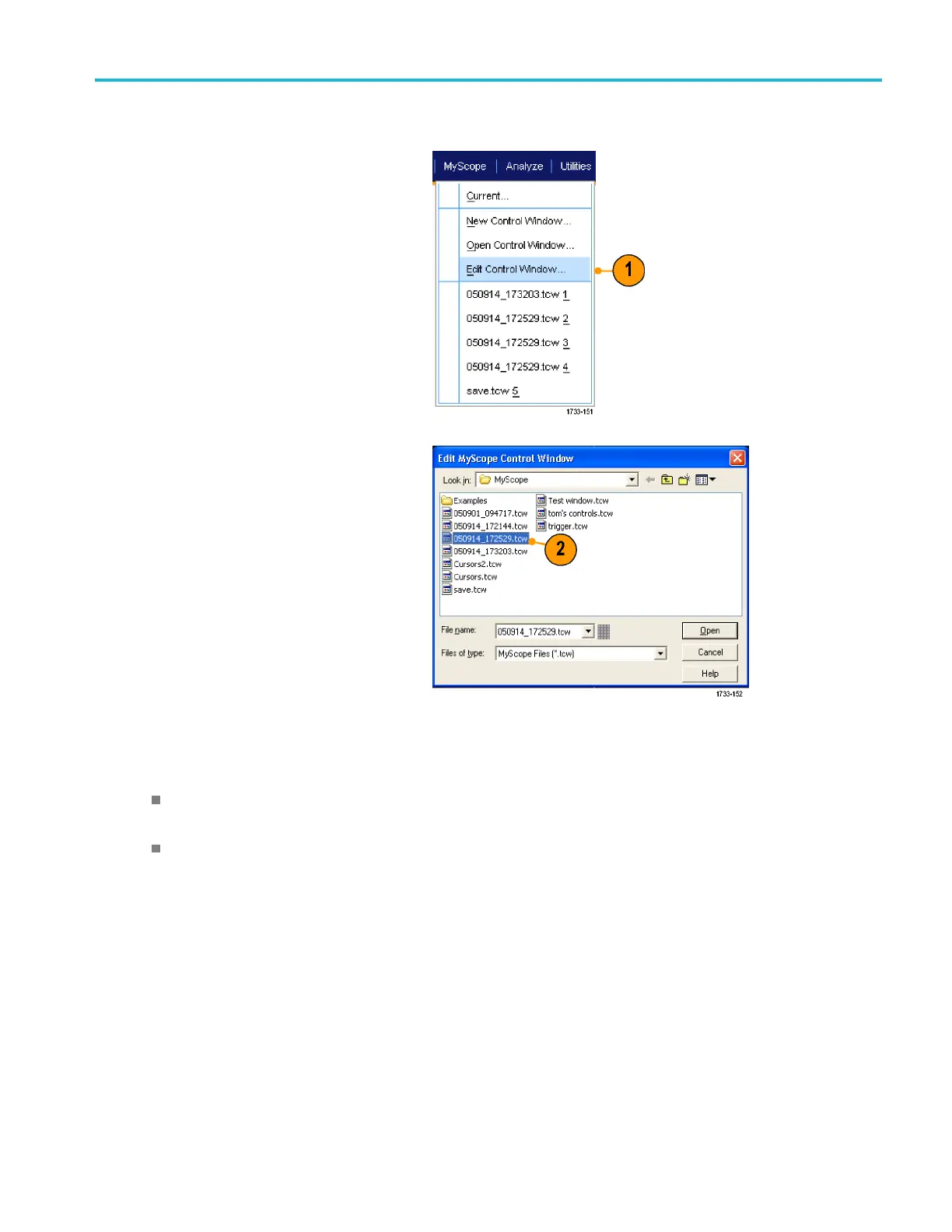

To edit a MyScope control w indow do the following:

1. Select MyScope > Edit Control

Window....

2. Select the control window you want to

edit, and then click Open.

Quick tips

Some controls function differently in a MyScope control window than they do in the standard control window. For

detai

ls, see the online help.

You c

an copy MyScope control windows (.tcw ﬁles) to other MSO/DPO70000DX, MSO/DPO70000C, DPO7000C,

and MSO/DPO5000B Series instruments.

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 151
