Application Exa
mples

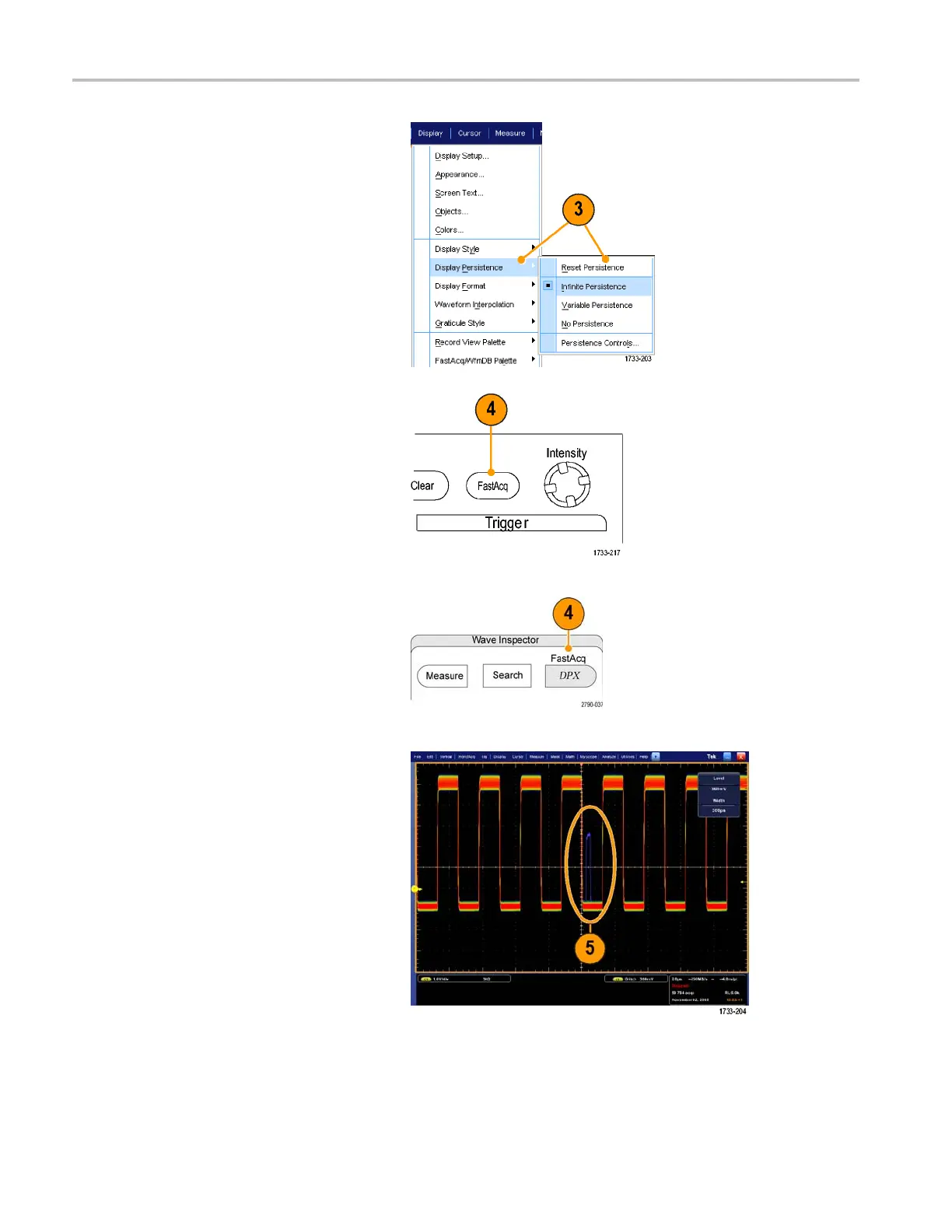

6. To trigger on the glitch that you identified

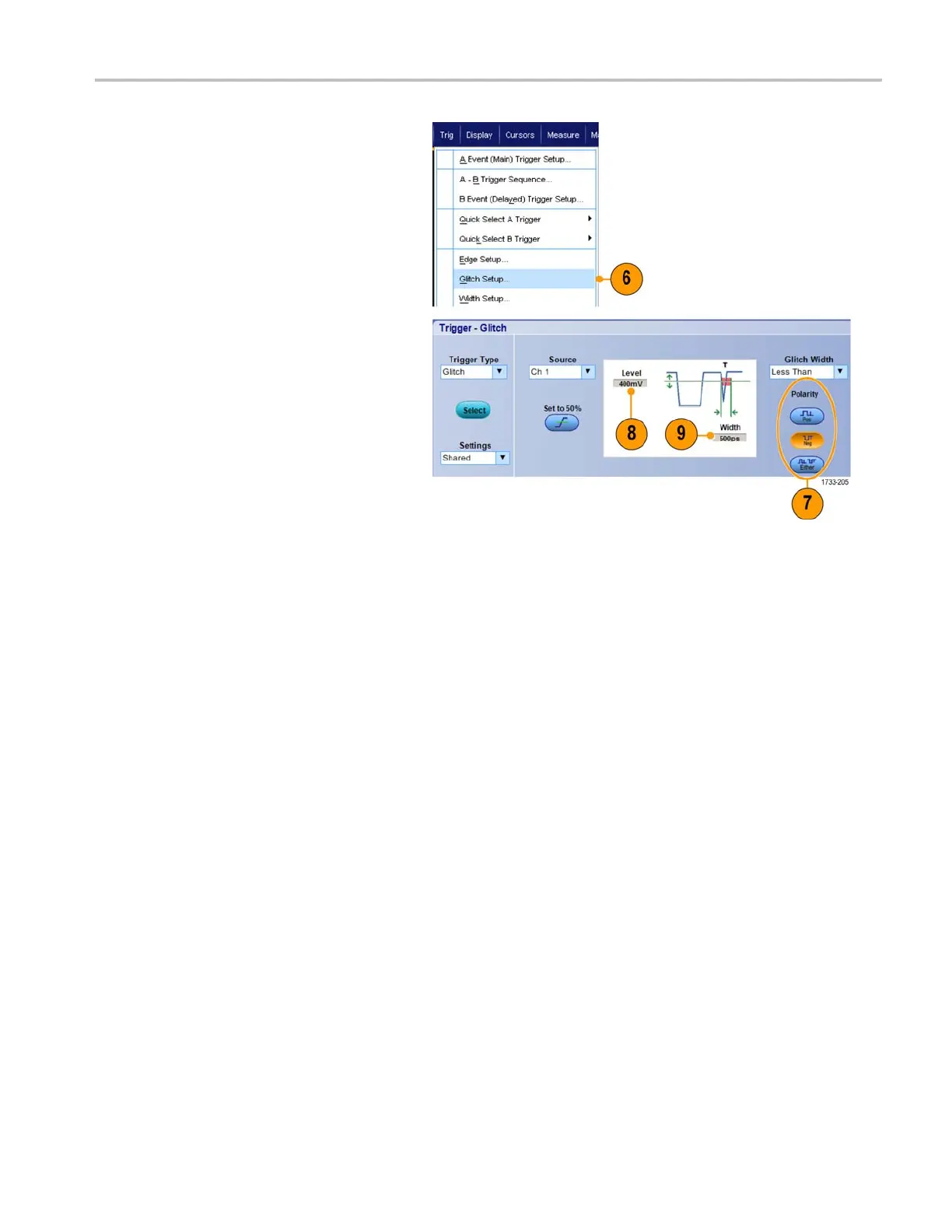

in step 5, select Trig > Glitch Setu p....
7. Select the appropriate polarity.
8. Click Level, and then set the level based
on what you fou
nd in step 5.
9. Click Width,
and then set the width
based on what you found in step 5.
MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DP O5000 Series U ser M anual 161
