Start Link Training

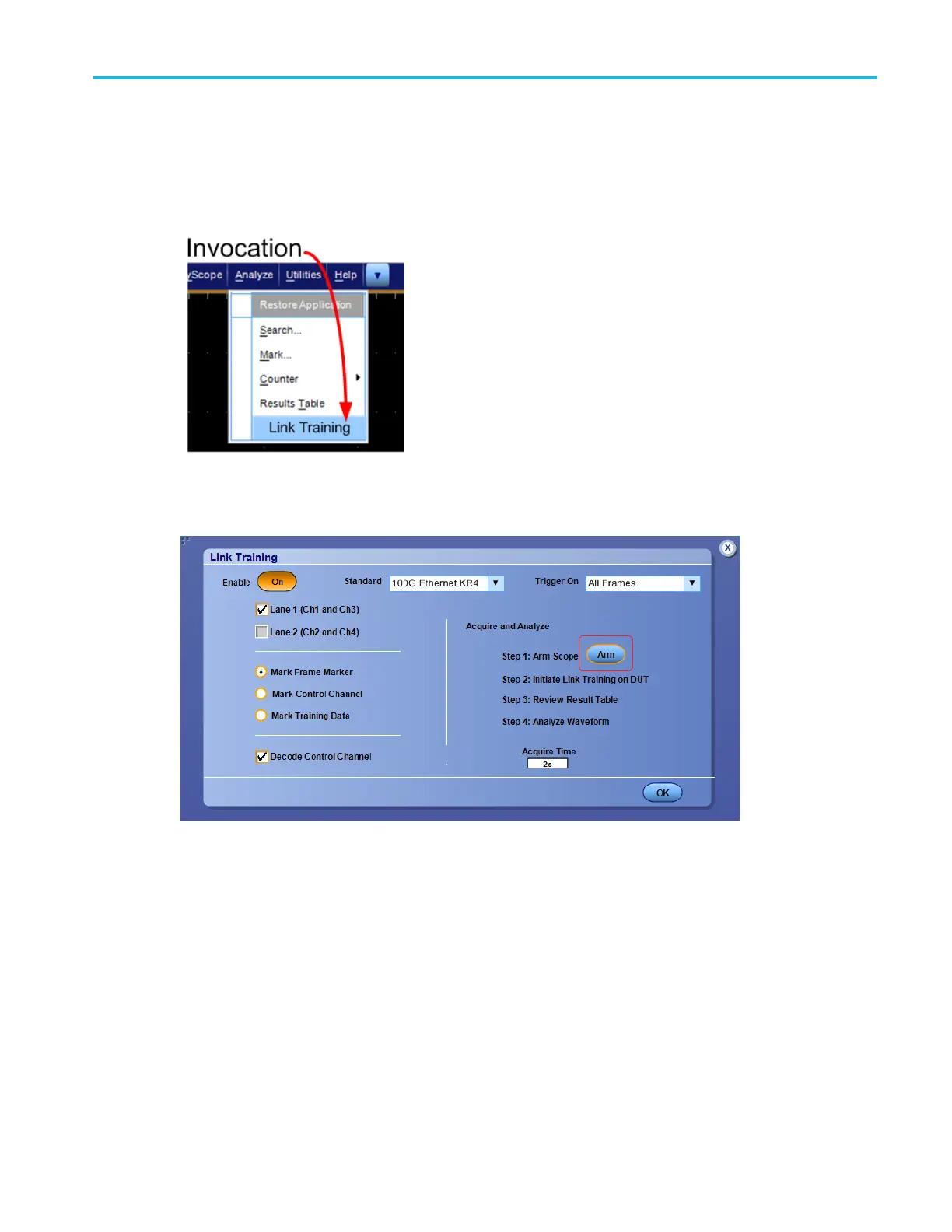

To start Link Training do the following steps:

1. From the Menu Bar select Analyze > Link Training.

2. Press the Arm button.

3. Start Link Training on the device under test (DUT).

Starting Link Training on the DUT is DUT-specific, but is typically done from a command line console program.

LinkTraining

DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 213
