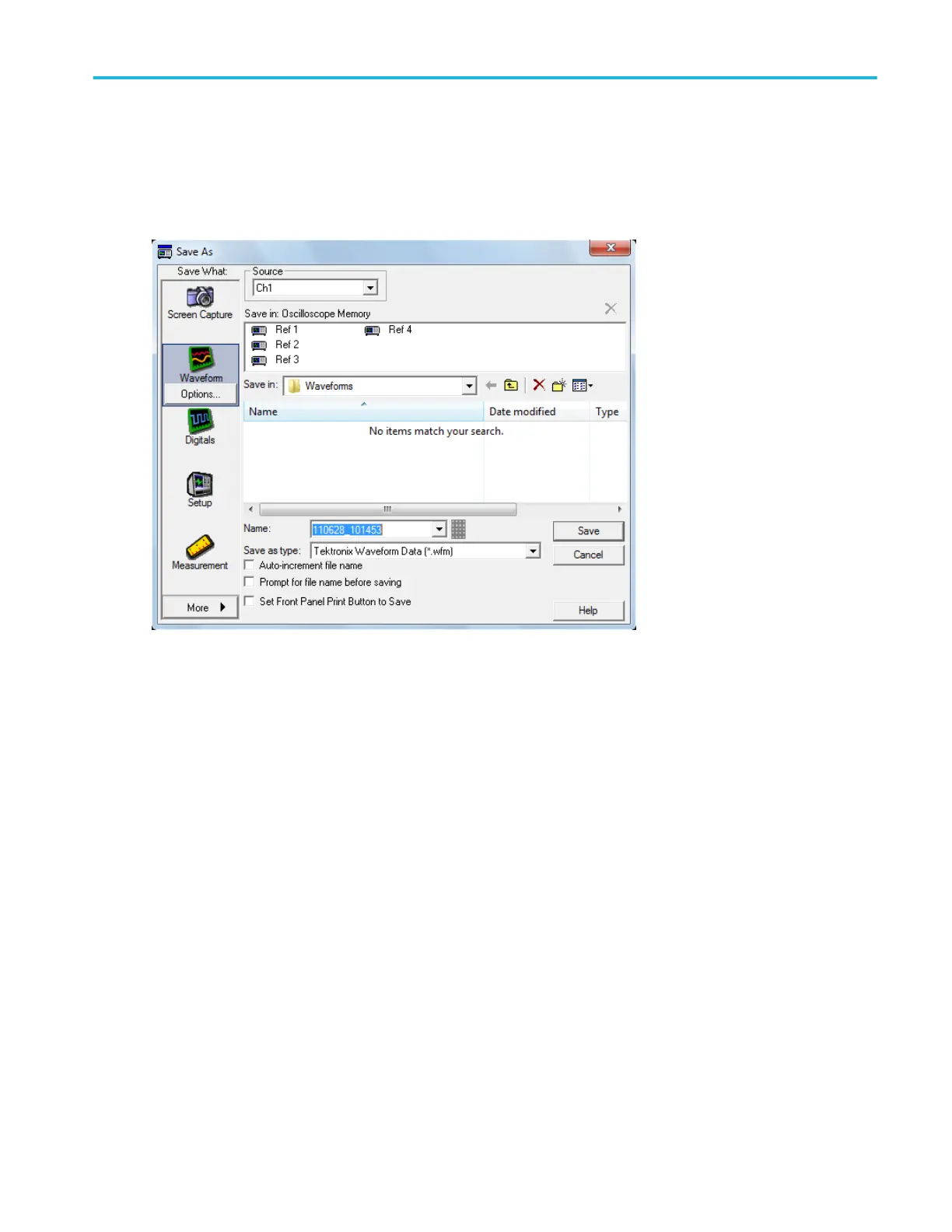

Save as dialog box (Waveform)
From the File menu, highlight Save As; then select Waveform from the submenu. From the Reference Waveform controls, click
the Save button.
Overview. Use this dialog box to save a waveform to a reference location or to a specified folder.
To use.
■
To save to a reference location, select the Source, and then click the reference location in Oscilloscope Memory.
■
To save to a file, enter a Name, use the default file name, or click Ato-increment file name if you want to save a series of
files without typing in a new name each time. The file extension specified in the Save as type list will automatically be
appended to the file name.
File menu
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 543
