Sequence triggering (horizontal delay on)
From the Trig menu, select A - B Trigger Sequence; then open the A -> B Seq tab.
Overview. Select the A-B Seq tab to use the A Event (main) trigger with the B Event trigger to capture complex data.
For information on the controls, click the buttons.
■
Trigger Summary
■
A Only
■
A->B Trig after Time
■
A->B Trig on nth Event
■
Horizontal Delay Mode
■
A->B Seq (No Delay)
■
Counter Measurements

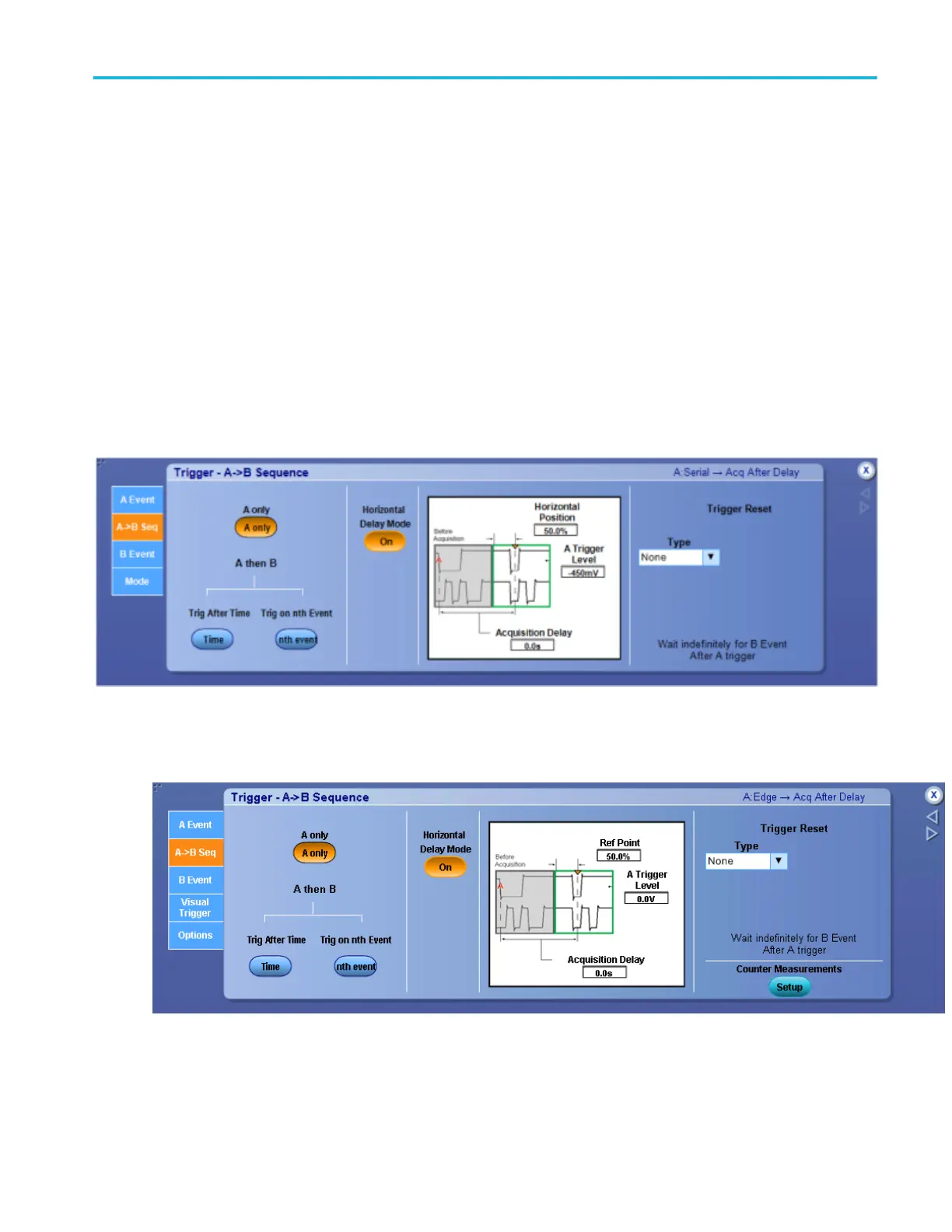

The following screen appears on DPO70000SX Series instruments:
Oscilloscope reference
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 823
