Learn about bus setups.

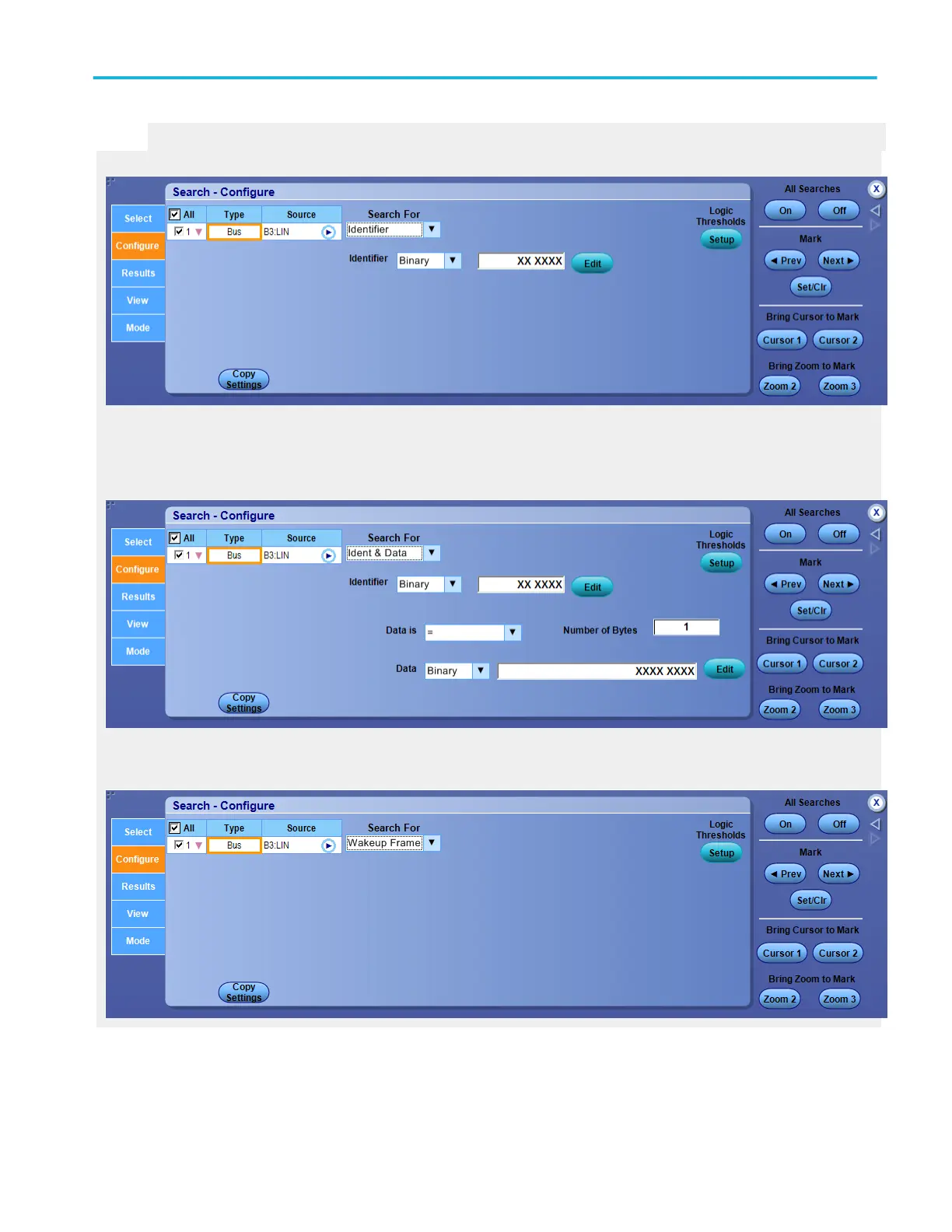

Search for identifier

Select the Identifier from the drop-down list. Click Edit to enter the data value.

Search for ident & data

The data type options available in Search For Ident & Data are Number of Bytes, Identifier, Data is, and Data value.

Select the Data from the drop-down list. Click Edit to enter the data value.

Search for wakeup frame

Analyzing waveforms
