To use.

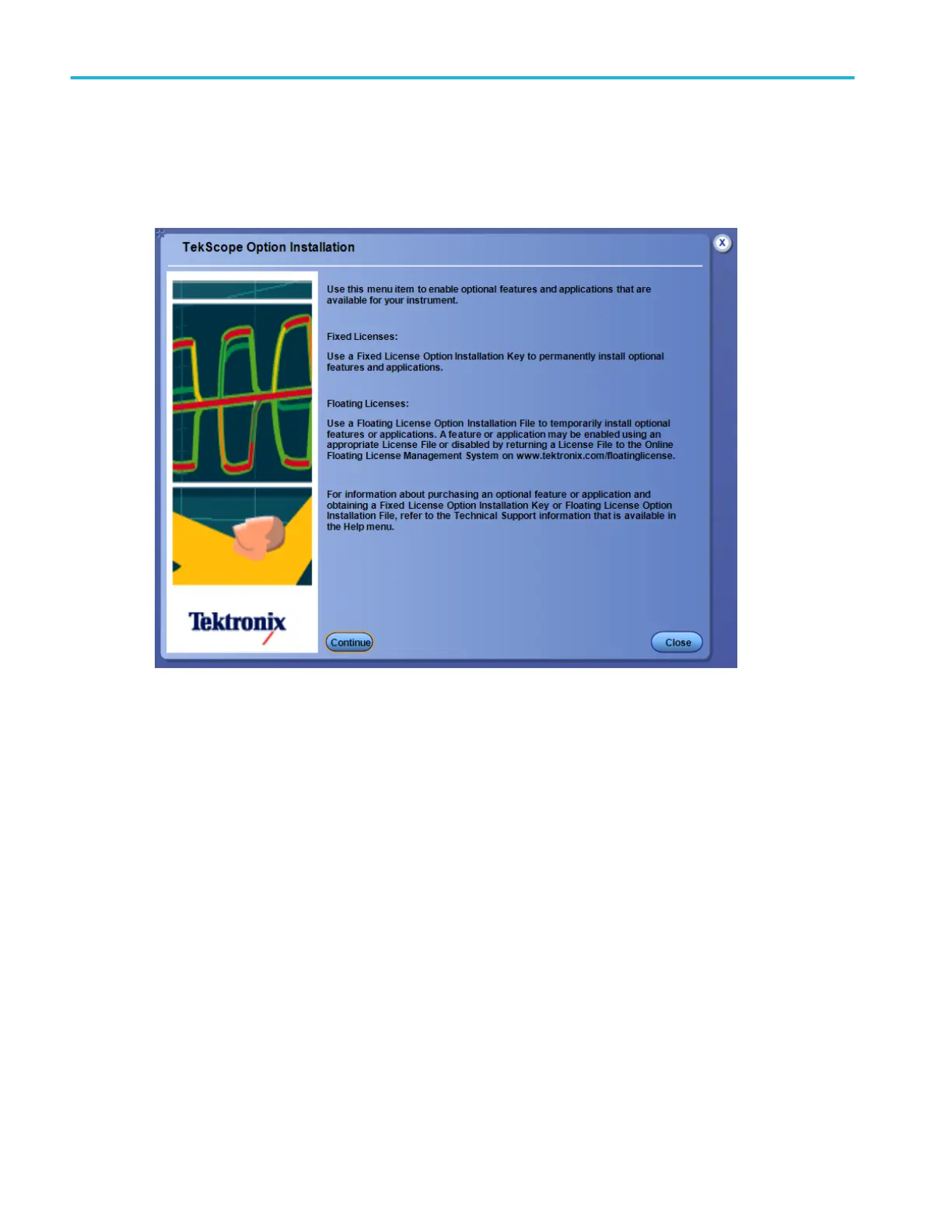

1. Click the Continue button in the initial dialog box.

2. Use either floating license or fixed license and follow the on-screen instructions to install the options.

Utilities

564 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
