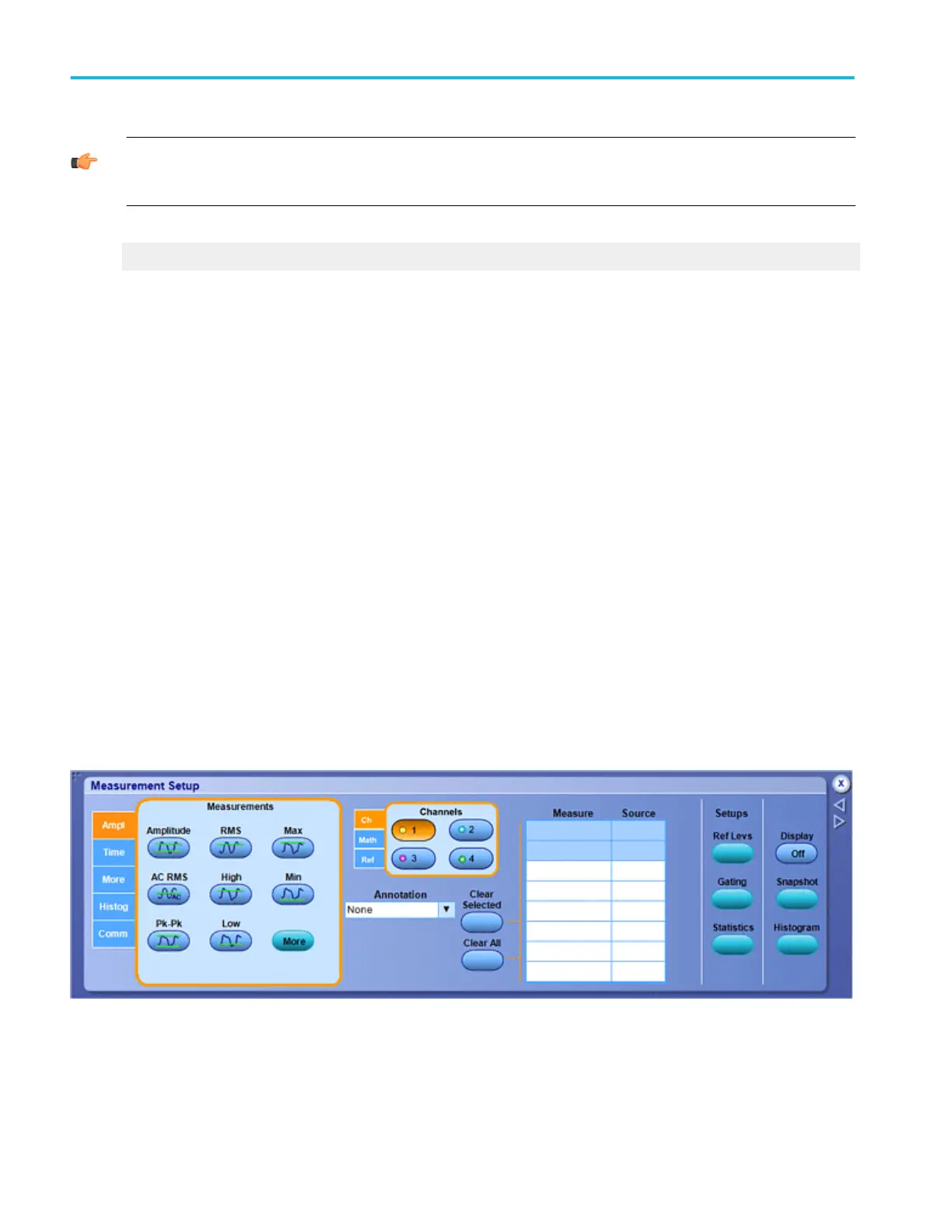

Measurement setup control window (Amplitude tab)
From the Measure menu, select Measurement Setup; then open the Ampl tab.
Overview
Use this control window to set up the instrument for taking automatic amplitude measurements.
To use
For information on the controls, click the buttons.
■
Measurements
■
Channel
■
Measure | Source
■
Ref Levels
■
Gating
■
Statistics
■
Snapshot
■
Histogram
Measurement setups
