±5 V absolute maximum input.
>1.2 V/FS settings: ±8.0 V. Limited by maximum Vterm current and the attenuator power.
ATI Channel: ± 0.75 V
pk
Aux channel: ±5.0 V
pk

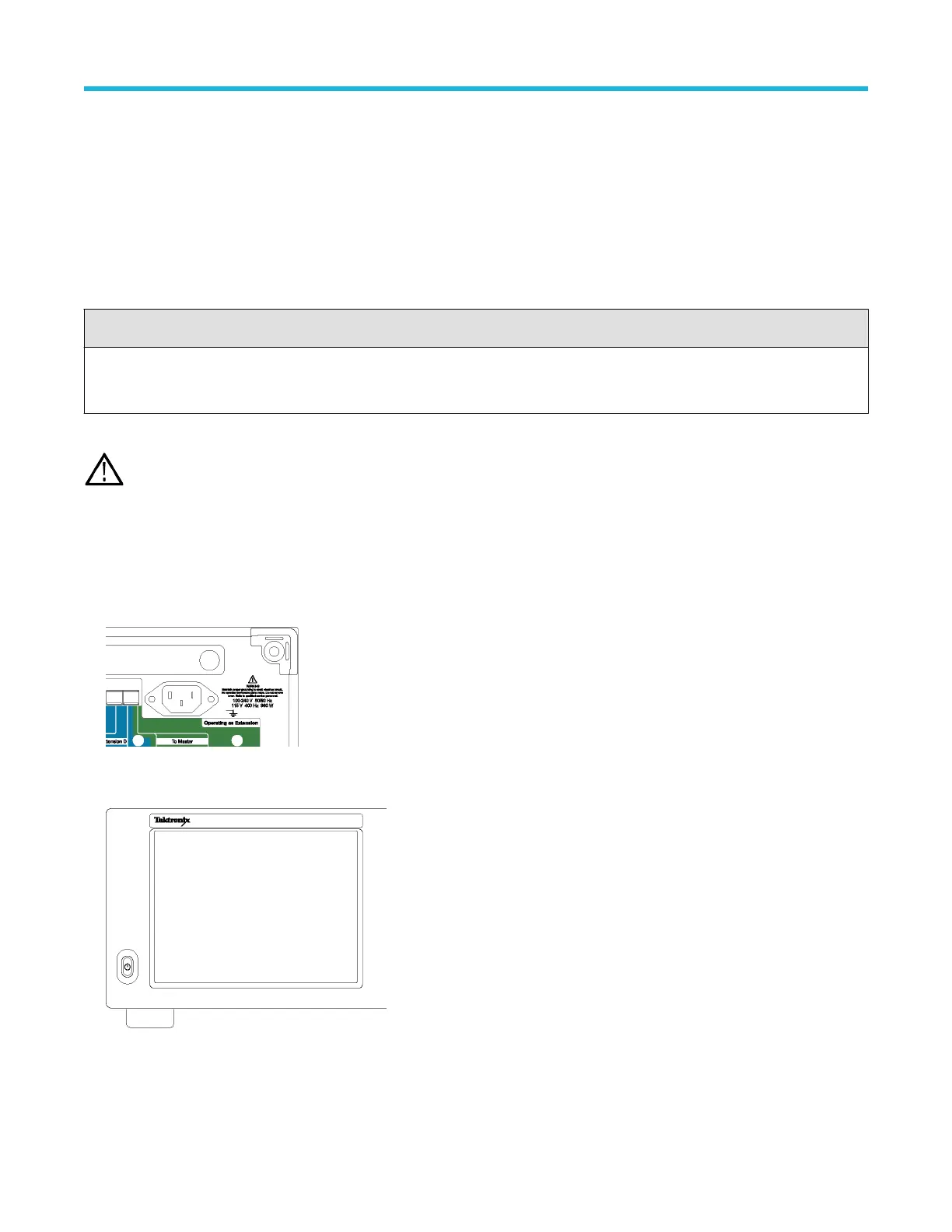

Power supply requirements
The power supply requirements for your instrument are listed in the following table.
Source Voltage and Frequency Power Consumption
100 VAC to 240 VAC, 50/60 Hz
or 115 VRMS, 400 Hz.
980 W
Warning:
To reduce the risk of fire and shock, ensure that the mains supply voltage fluctuations do not exceed 10% of the operating voltage
range.
Power on the instrument
Procedure
1. Connect the AC power cord to the rear of the instrument.
2. Use the front-panel power button to switch the instrument on.
The power button indicates instrument power states:
• No light – no power applied
Power supply requirements
8
