Tektronix Keithley DMM7510 Quick Start Guide

The physical connections for the front panel are shown in
the following gures. Note that you must use either the front
terminals or rear terminals — you cannot mix connections.
The front-panel and rear-panel connections are safety
banana jacks.

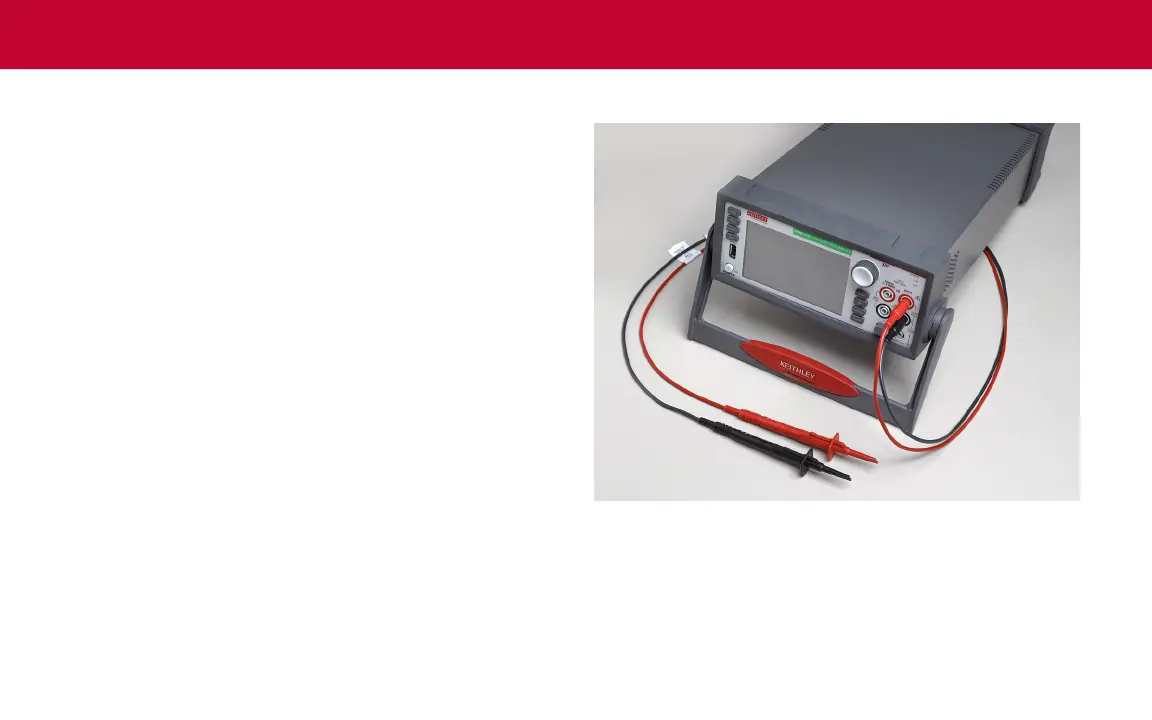

The example in this guide shows you how to make
connections to the front panel and short the connections.
For this example, you can make the connections with the
Model 1756 Standard Test Lead Kit. The 1756 is supplied
with the DMM7510. The optional Keithley Instruments Model
8608 Safety Clip Lead Set is also an option.
To make connections:
1. Make sure the front panel power switch is in the o󰀨 (O)
position.
2. Connect the red lead to the INPUT HI connection.
3. Connect the black lead to the INPUT LO connection.
