3. T
ap the Help icon on the menu title for more information on these settings.
4. Tap outside the menu to close the menu.

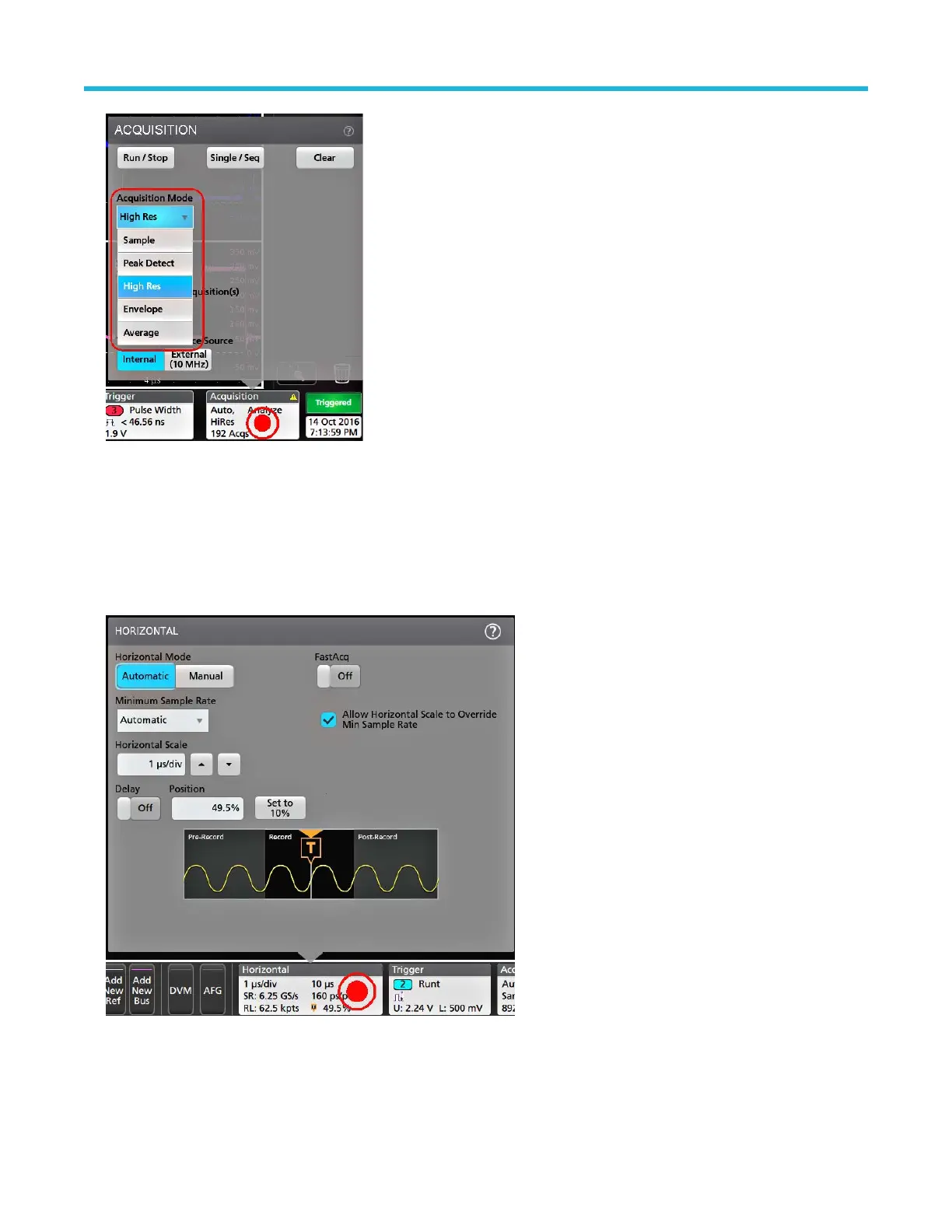

Set Horizontal parameters
Use this procedure to set the horizontal time base parameters such as mode, minimum sample rate, horizontal scale, delay, and trigger
delay time (relative to the center of the waveform record.
1. Double-tap the Horizontal badge on the Settings bar to open the Horizontal configuration menu.
2. Use the menu selections to set horizontal parameters.
3. T
ap the Help icon on the menu title for more information on these settings.
Operating basics
50
