Giving Demos of Advanced Tektronix 40 00 Features

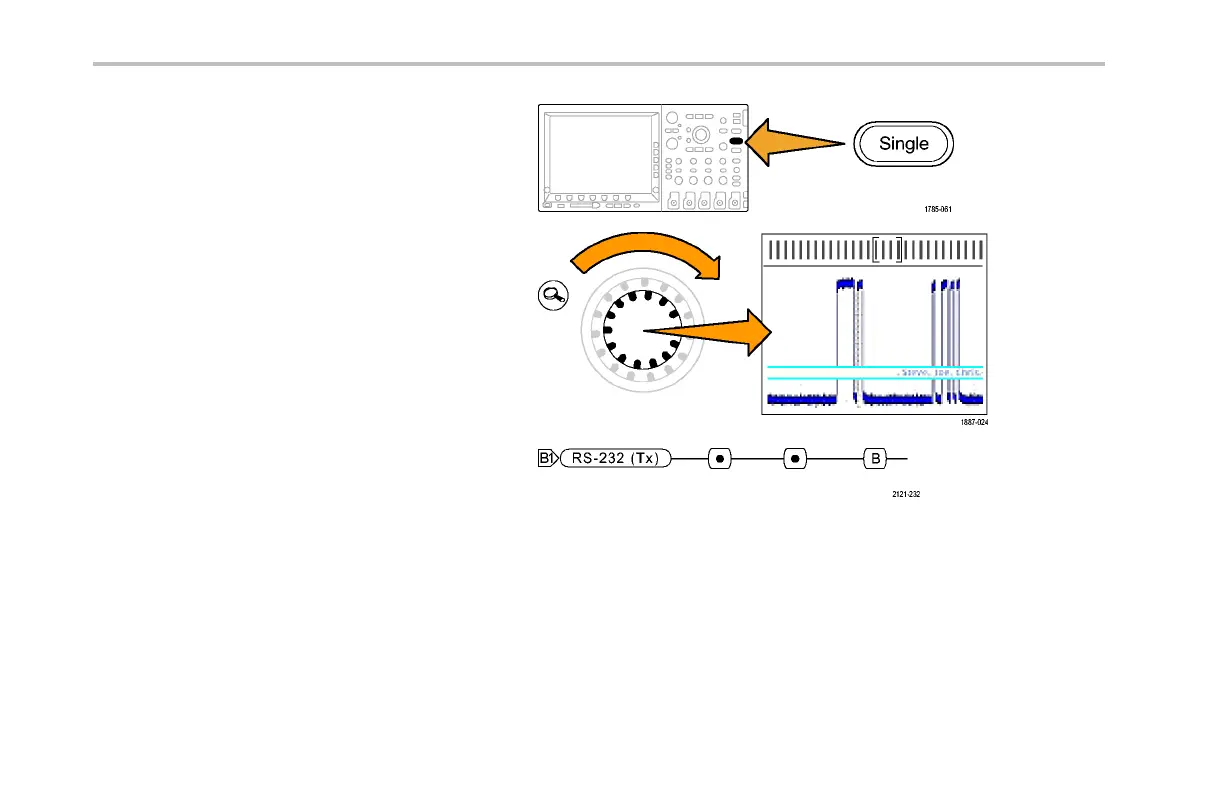

14. Push Single.
15. Turn the zoom (inner) kn ob of the Wave
Inspector to zoom in on the decoded bus
display until you can read the ASCII characters
(e.g. 10 X).
Notice that each box contains a character.
60 Tektronix 4000 Oscilloscope Demo Instruction Manual
