Installation
3. If necessary, adjust your probe.
Repeat as needed.
Quick Tips

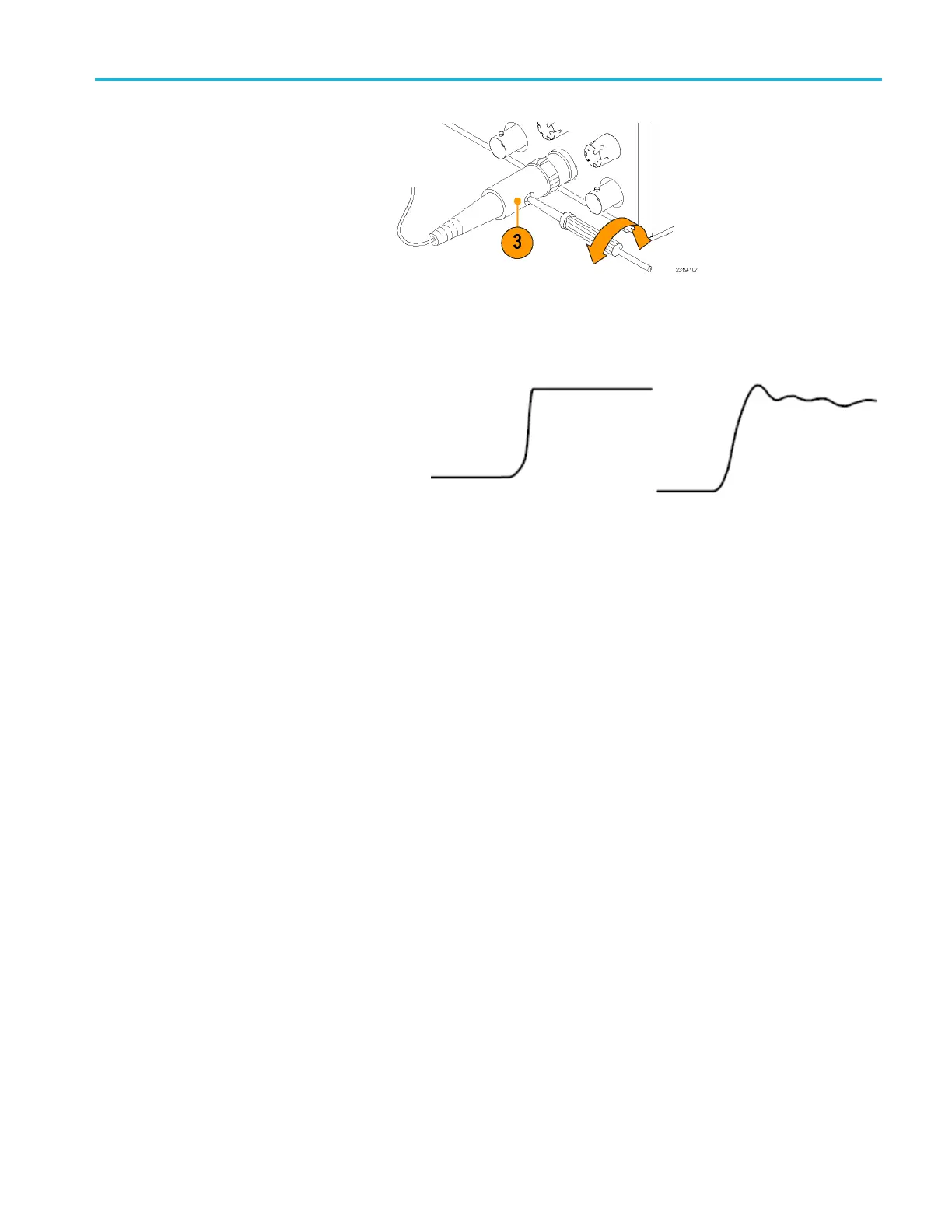

Use the shortest possible ground lead
and signal path to minimize probe-induced
ringing and distortion on the measured
signal.
Signal wi
th a short ground lead
Signal with a long ground lead
Application Module Free Trial
A 30-day
free trial is available for all application modules not installed in your oscilloscope. The trial period begins when you
power on the oscilloscope for the first time.
After 30 days, you must purchase the module if you want to continue using the application. To see the date when your free
trial period expires, push the front panel Utility button, push the lower-bezel Utility Page button, use multipurpose knob a to
select
Config, and push the lower-bezel About button.
MSO2000B and DPO2000B Series Oscilloscopes User Manual 13
To Next Page
