Tektronix MSO2000B Series User Manual

Getting Acquain
ted with the Oscilloscope
Getting Acqua
inted with the Oscilloscope
Front-Panel Menus and Controls
The front panel has buttons and controls for the functions that you use most often. Use the menu buttons to access
more specialized functions.

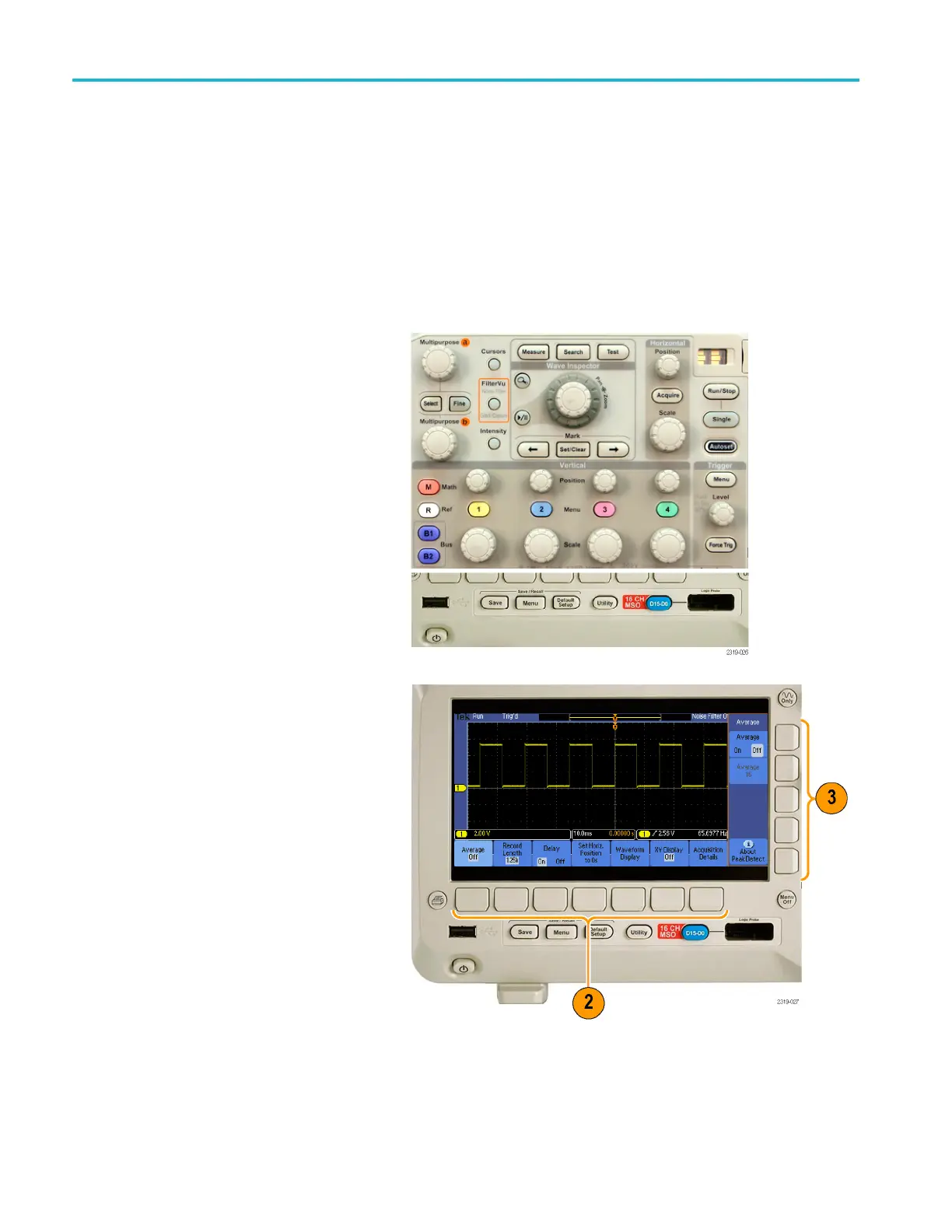

Using the Men u System
To use the menu system:
1. Push a front-panel menu button to
display the menu that you want to use.
2. Push a lower-bezel button to select a
menu item. If a pop-out menu appears,
turn multipurpose knob a to select
the desired choice. If a pop-up menu
appears, press the button again to select
the desired choice.
26 MSO2000B and DPO2000B Series Oscilloscopes User Manual

Tektronix MSO2000B Series Specifications

General

Analog Channels	2 or 4
Vertical Resolution	8 bits
Digital Channels	16
Waveform Capture Rate	5, 000 wfms/s
Display	7-inch WVGA (800 x 480) color TFT LCD
Trigger Types	Edge, Pulse Width, Logic, Video
Serial Bus Analysis	I2C, SPI, CAN, LIN, RS-232/422/485/UART
Probe Interface	TekVPI
Connectivity	USB 2.0
Power Supply	100 to 240 VAC
Dimensions	368 mm
Sample Rate	1 GS/s (2 GS/s with interleaving)
Record Length	1 M points (standard), up to 10 M points (optional)
