Giving Demos of MSO Features
7. Push the front-panel Run/Stop button.

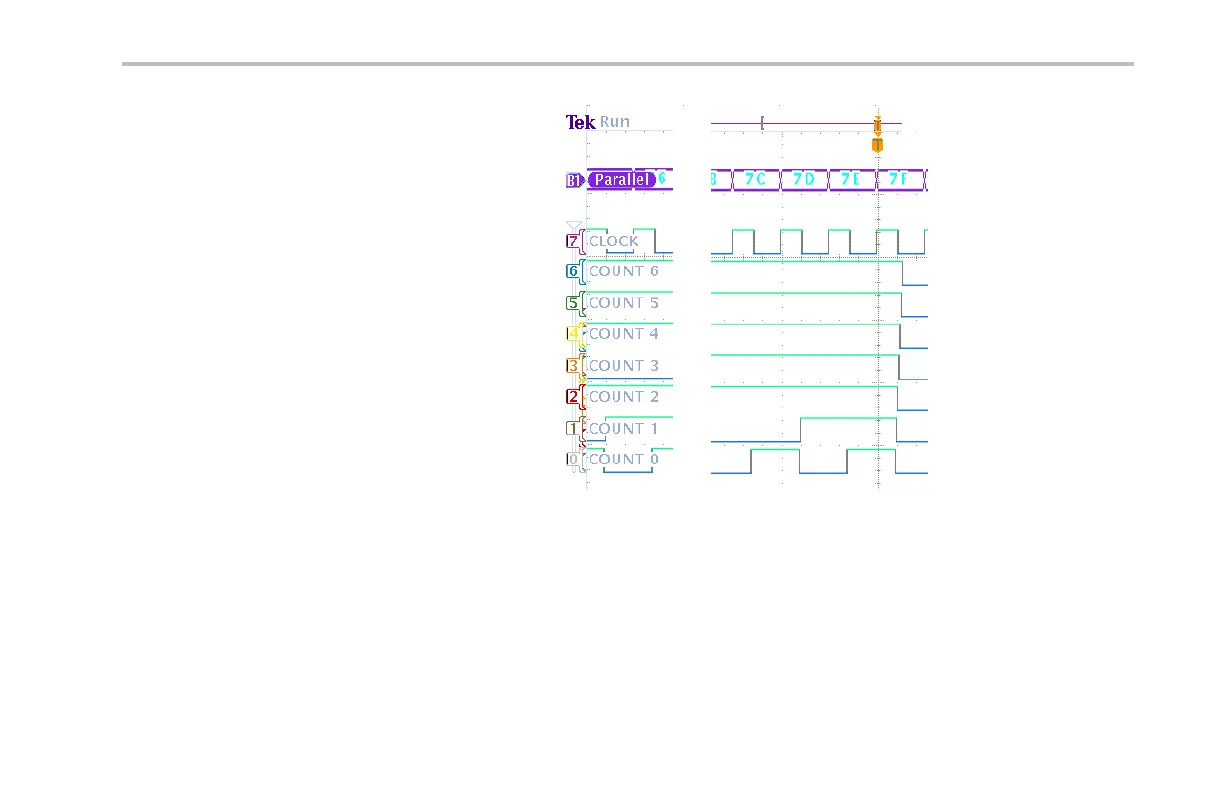

Notice that the oscilloscope triggers when the
7F (the all 1’s, green) data value you selected
above occurs. Triggering on a data pattern is
a common request from engineers working on
embedded designs.
