Getting Started with the MSO/DPO2000 , M SO/DPO30 00, and MSO/DPO4000 Series Oscilloscopes

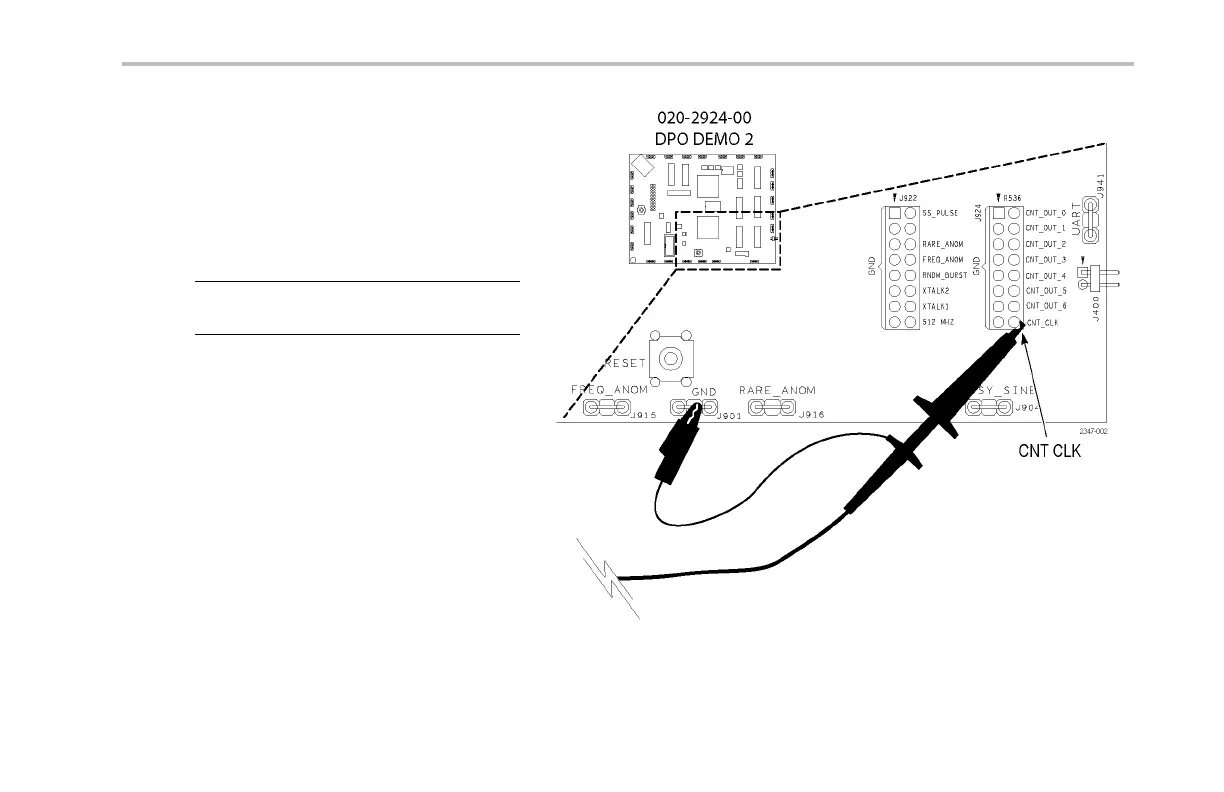

4. Connect a probe to channel 1, such as
the P2221 with the MSO/DPO2000 or
the P 6139A with the MSO/DP O3000 or
MSO/DPO4000. Then connect the ground
lead of the probe to a point lab eled GND
on the Demo 2 board. Attach the p robe
tip to th e square pin on the Demo 2 board
labeled CN T CLK.
NOTE. CNT CLK is a clock used for a
synchronous counter.
Demo 2 Board Instruction Manua l 3
