Giving Demos of MSO Features

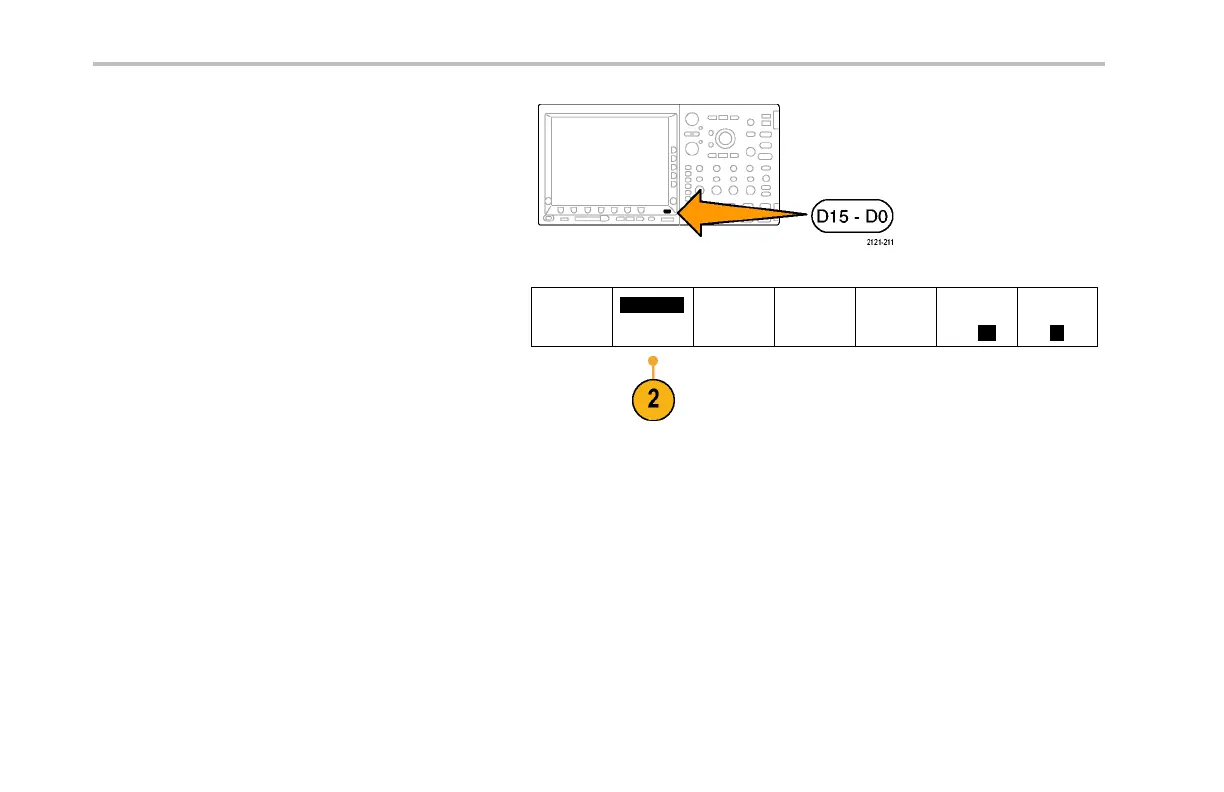

1. Push the front-panel D15-D0 button, if t he
lower-bezel D15-D0 menu is not already
displayed.
2. Push the lower-bezel Thresholds menu
button.
D15-D0
On/Off
Thresholds
Edit Labels MagniVu
On |
Off
Height
S|
M|L
Notice tha t you can set each channel’s
threshold voltage, individually (MSO4000 only)
or as a group, with multipurpose k no bs a and
b. For this exercise, leave the thresholds the
way they are.
On the MSO2000/MSO3000, yo u can set the
threshold voltage for G roup 1 or Group 2.
90 Demo 2 Board Instruction Manual
