Analyze Waveform Data

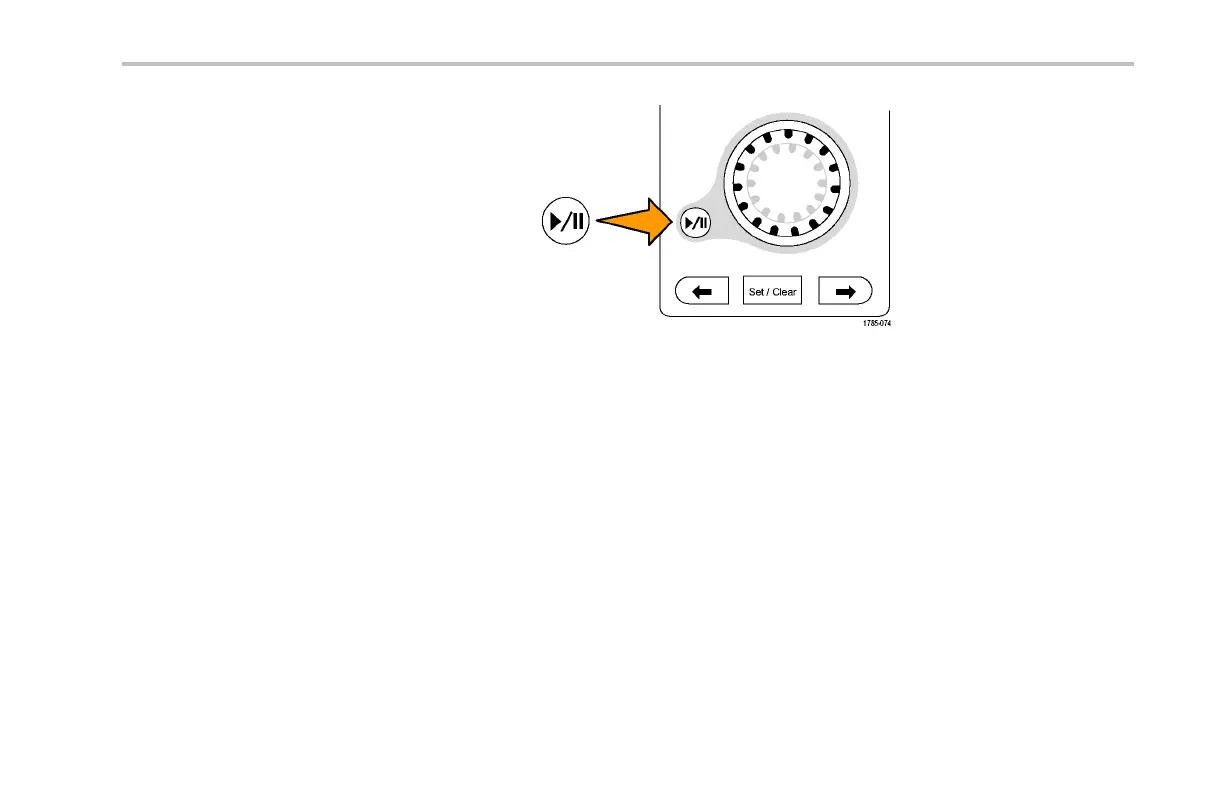

5. Pause the play-pause feature by pushing
the play-pause button again.
Searching and Marking Waveforms
You can mark locations of interest in th e acquired waveform. These marks help you limit your analysis to particular regions of the
waveform. You ca n mark areas of the waveform automatically, if they meet some sp ecial criteria, or you can manually mark each
item of interest. You can use arrow keys to jump from mark to mark (area of interest to area of interest). You can automatically
search and ma rk many of the same parameters that you can trigger on.
Search ma rks provide a w ay to mark a waveform region for reference. You can set marks auto m atically with search criteria. You
can search for and mark regions with particular edges, pulse widths, runts, log ic states, rise/fa ll times, setup and hold, and bus
search types.
To manually set and clear (delete) marks:
DPO2000 and MSO2000 Series Oscilloscopes User Man ual 203
