Analyze Wavefor
mData
Using Wave Inspector to Manage Long Record Length Waveforms
The Wave Inspector controls (zoom/pan, play/pause, marks, search) help you to efficiently work with long record length
waveforms. To magnify a waveform horizontally, turn the Zoom knob (center knob). To scroll through a zoomed waveform,
turn the Pan knob.

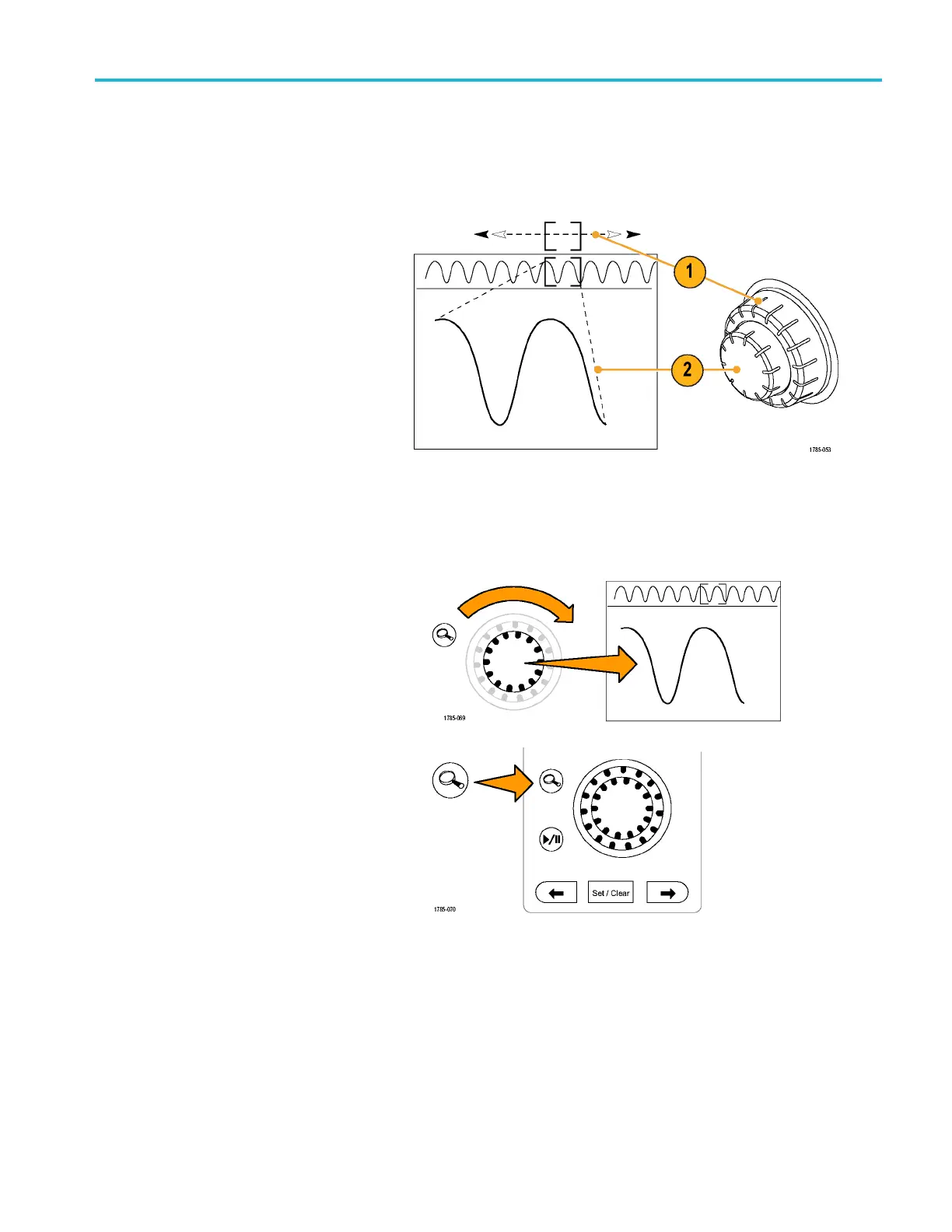

The Pan-Zoom Control consists of:
1. An outer pan knob
2. An inner zoom knob
Zooming a Waveform
To use zo
om:
1. Turn the
inner knob on the Pan-Zoom
control clockwise to zoom in on a
selected portion of the w aveform. Turn
the kno
b c ounterclockwise to zoom back
out.
2. Alter
natively, enable or disable the zoom
mode by pushing the zoom button.
MSO2000B and DPO2000B Series Oscilloscopes User Manual 105
