Getting Acquain
ted with the Oscilloscope

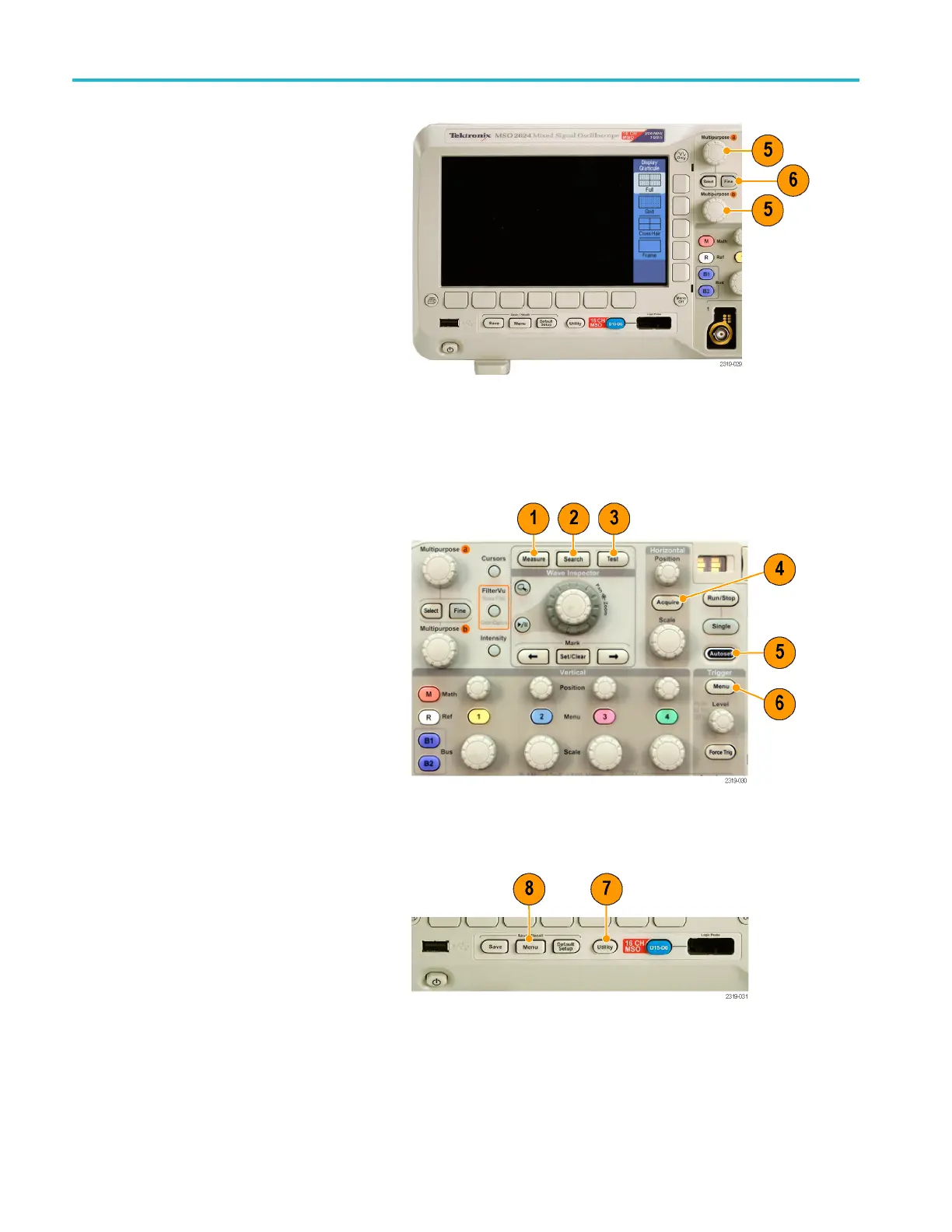

5. Certain menu choices require you to set
a numeric value to complete the setup.
Use the upper a
nd lower multipurpose
knobs a and b to adjust values.
6. Push Fin e to turn off or on the ability to
make smaller adjustments.
Using the Menu Buttons
Use the me
nu buttons to perform many functions in the oscilloscope.
1. Measure. Push to perform automated
measurements on waveforms or to
configur
ecursors.
2. Search.
Push to search through
an acquisition for user-defined
events/criteria.
3. Test. Push to activate advanced or
application-specific testing features.
4. Acquire. Push to set the acquisition
mode and adjust the record length.
5. Autoset. Push to perform an automatic
setu
p of oscilloscope settings.
6. Tri
gger M en u. Push to specify trigger
settings.
7. Uti
lity. Push to activate the system utility
functions, such a s selecting a language
or setting the date/time.
8. Save / Recall Menu. P ush to save and
re
call setups, waveforms, and screen
images to internal memory, or a US B
flash drive.
28 MSO2000B and DPO2000B Series Oscilloscopes User Manual
