Acquire the Signal

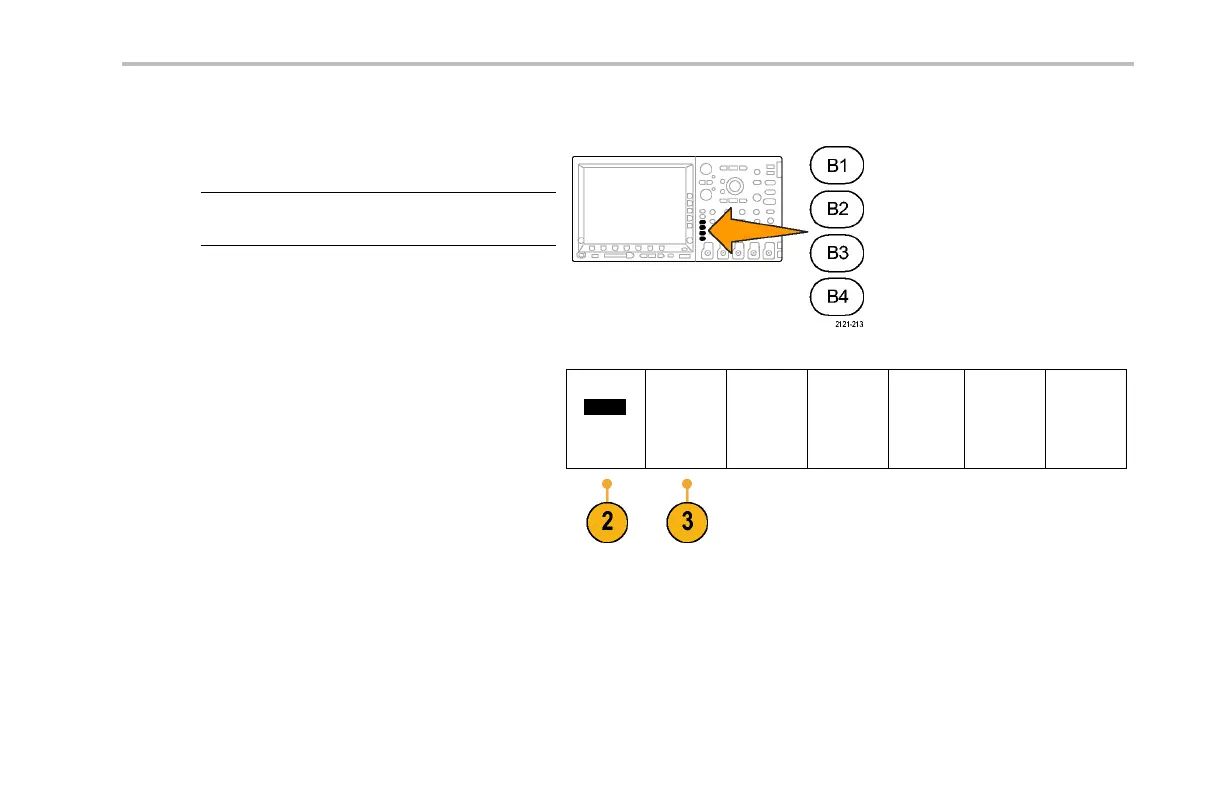

To set up bus parameters:
1. Push B1 or B2 to bring up the lower-bezel bus
menu.
NOTE. You can also push B3 or B4 on the
MSO4000 Series.
2. Push Bus. Turn multipurpose knob a to scroll
through the list of bus types and select the
desired bus: Parallel (MSO4000 Series only),
I
2
C, SPI, CAN, RS-232, LIN, FlexRay, or Audio.
B1
Parallel
Define
Inputs
Thresholds B1 Label
Parallel
Bus Display Event Table
The actual menu item s sh own will depend on
your model oscilloscope and the application
modules installed.
3. Push Defi ne Inputs. The cho ices d epend on
the selected bus.
MSO4000 and DPO4000 Series Oscilloscopes User Manual 103
