Acquire the Signal

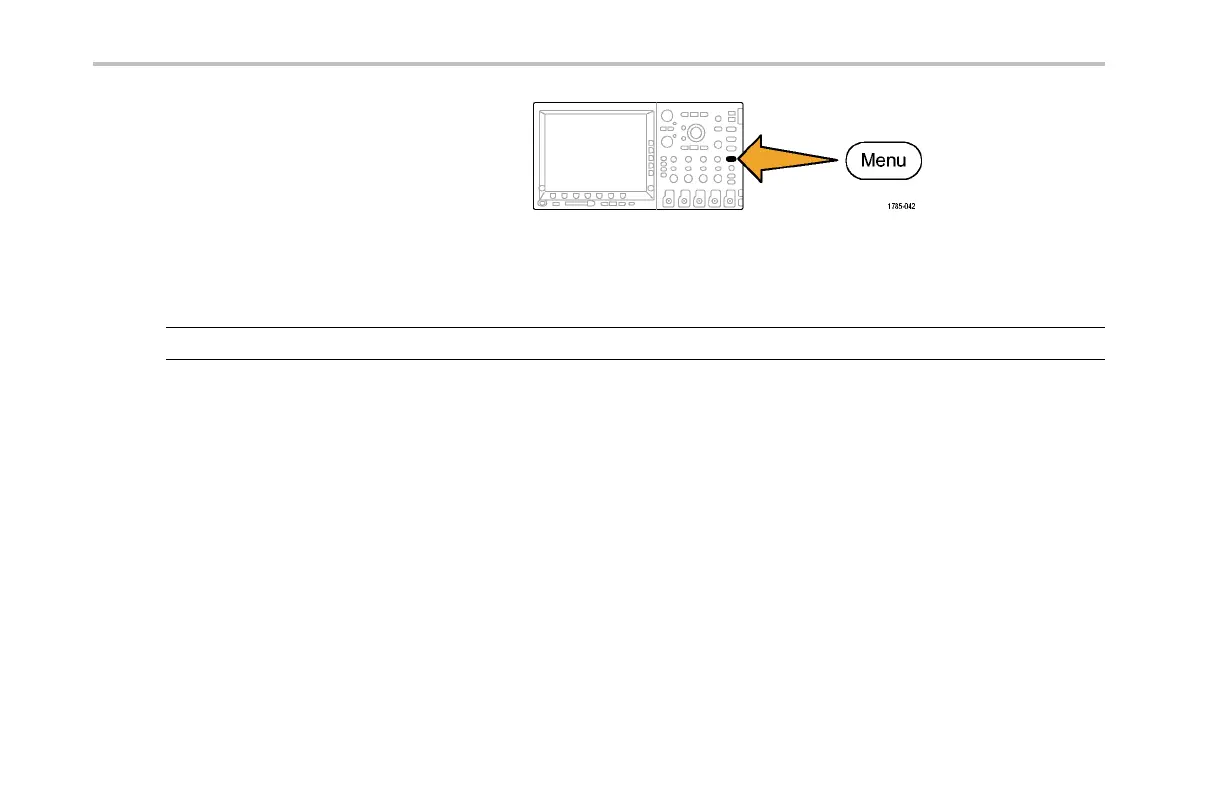

2. Push Trigger Menu and enter trigger
parameters. (See page 137, Choosing a
Trigger Type.)
You can display bus information without
triggering on the bu s signal.
SettingUpBusParameters
NOTE. For all serial bus sources, use any combination of channels 1 through 4, and D15 through D0.
To trigger on serial or parallel bus conditions, r efer to Triggering on Buses. (See p age 146, Triggering on Buses.)
102 MSO4000 and DPO4000 Series Oscilloscopes User Manual
