MSO4000
Features
12.

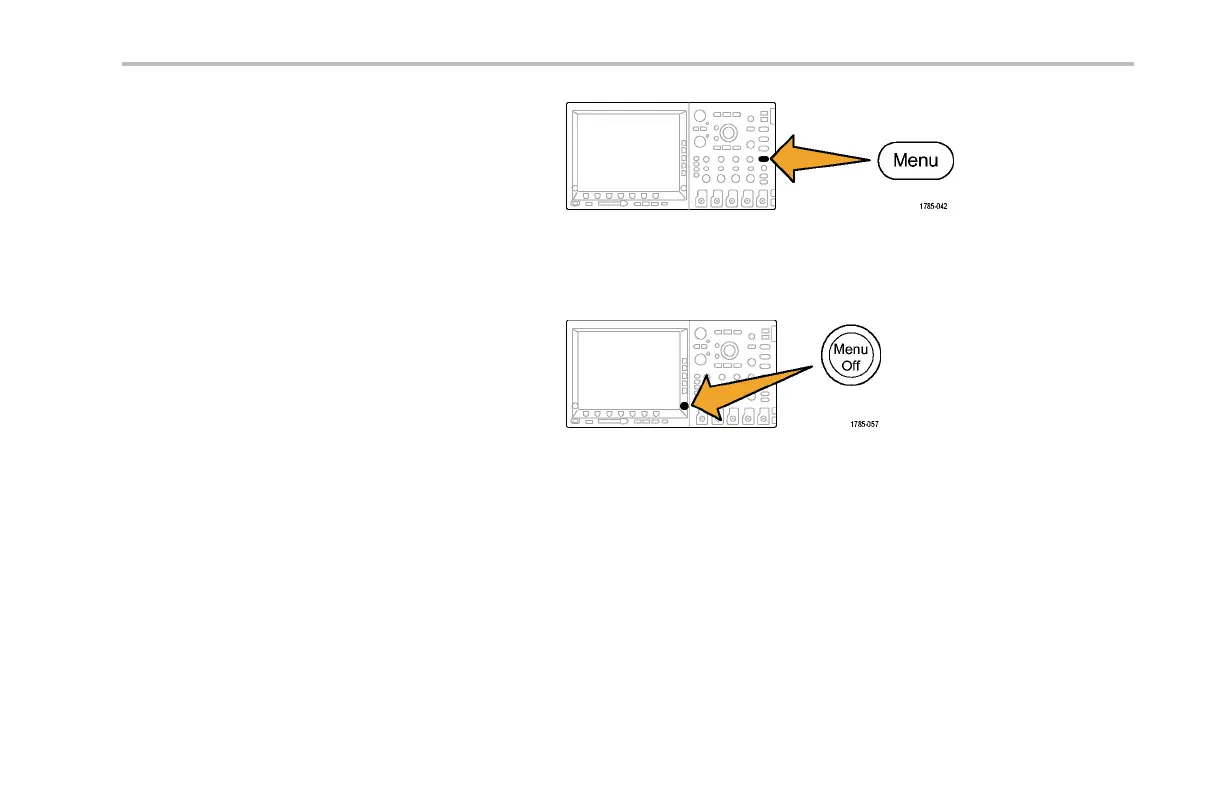

Push
the
front-panel
Trigger
Menu
bu
tton.
13.
Push
the
lower-bezel
Source
button
.
14.
Turn
multipurpose
k
no
b
a
to
select
D7
as
the
trigger
source.
15.
Push
Menu
Off
to
remove
the
side
menu.
T
ektronix
4000
Oscilloscope
Demo
In
struction
Manual
73
76
78
Table of Contents
Table of Contents
3
Getting Started with the Tektronix 4000 Series
5
Demo I: Acquiring a Signal
6
Demo II: Using Vertical Controls
9
Demo III: Using Horizontal Controls
11
Demo IV: Using Run/Stop Controls
12
Demo V: Using Trigger Controls
12
Demo VI: Using Cursors
15
Demo VII: Taking Measurements
17
Demo VIII: Saving a Screen Image
20
Giving Demos of Advanced Tektronix 4000 Features
24
Overall Package
24
Performance
25
Wave Inspector Demos
26
Demo IX: Setting up I2C Signals
27
Demo X: Using the Wave Inspector's Zoom and Pan Functionality
33
Demo XI: Using the Wave Inspector's Search Functionality
39
Demo XII: Using Serial Triggering and Analysis
44
Demo XIII: Searching Serial Signals
55
Demo XIV: Monitoring and Decoding RS-232 Signals
59
Demo XV: Triggering on a Serial Data Pattern (E.g. RS-232)
67
Giving Demos of MSO4000 Features
70
Ease of Use
70
Performance
70
MSO4000 Demos
72
Demo XVI: Setting up Digital Channels
73
Demo XVII: Discovering Per-Channel Thresholds
80
Demo XVIII: Labeling Channels
81
Demo XIX: Exploring Parallel Buses
83
Demo XX: Triggering on Parallel Bus Data Values
88
Demo XXI: Searching for Parallel Bus Data Values
91
Demo XXII: Discovering Multi-Channel Setup and Hold
93
Demo XXIII: Zooming in on White Edges
100
Operating the Demo Board
106
Operating the Board
107
Troubleshooting the Demo Board
108
