Tektronix MSO4054 Demo Instruction Manual

Giving Demos of Advanced Tektronix 4000 Features

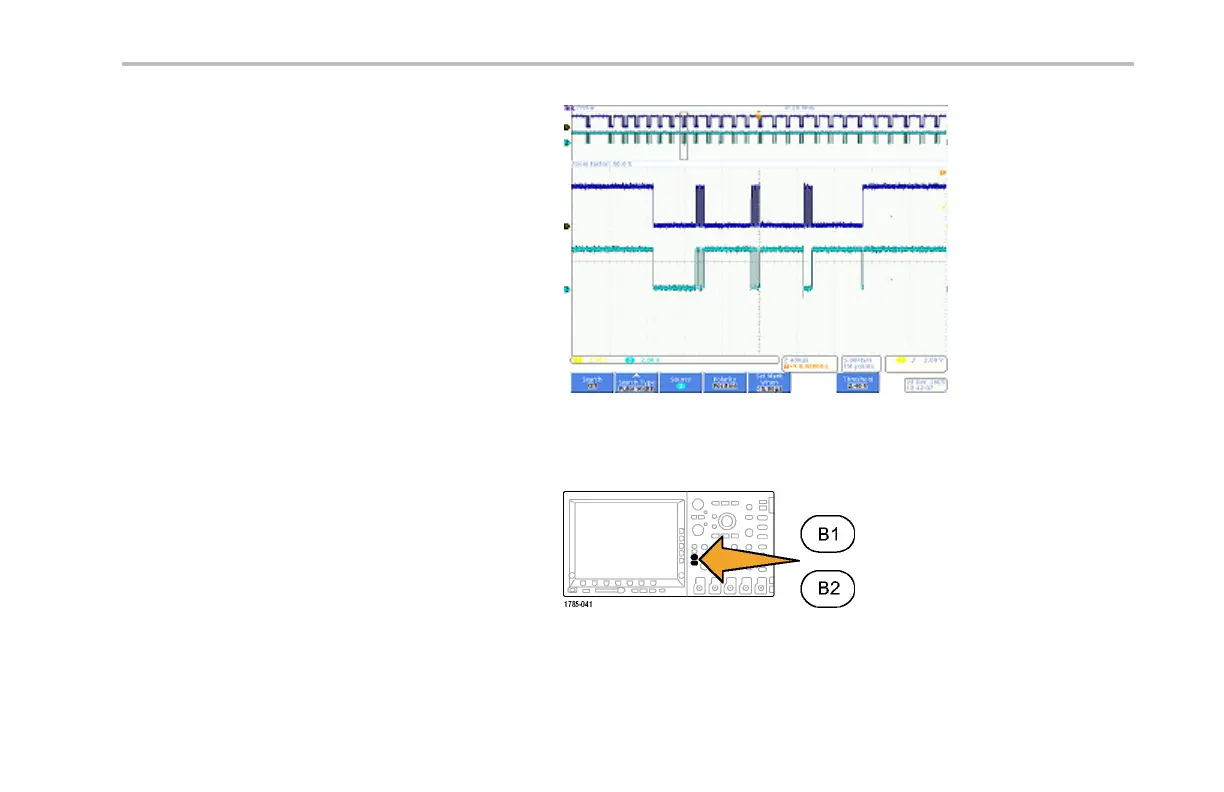

2. Pan the zoom window, if needed, so that the
screen looks like the one shown to the right.
Notice how easy it is to set up a bus on the
Tektronix 4000 Series while you do steps 3
through 9.
3. Push the B1 button.
Tektronix 4000 Oscilloscope Demo In struction Manual 41
