Tektronix MSO4054 Demo Instruction Manual

Giving Demos of Advanced Tektronix 40 00 Features

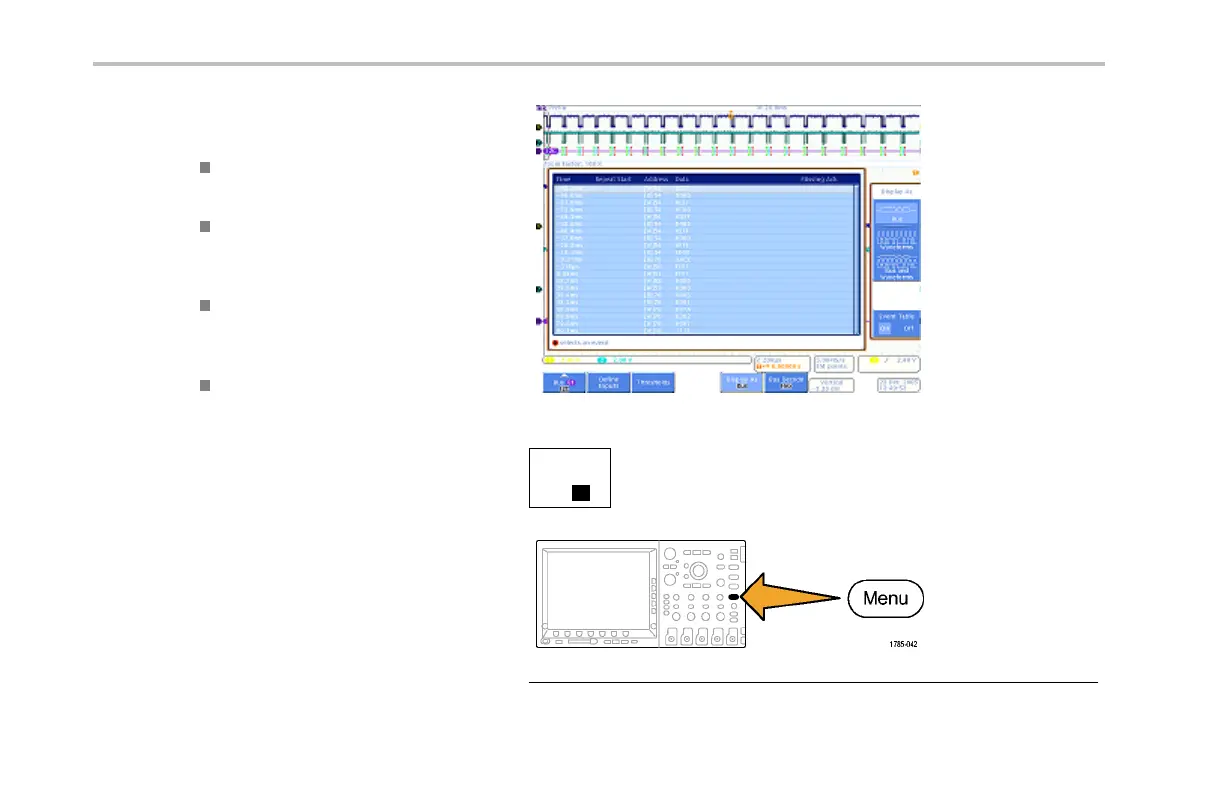

14. Push the side-bezel menu Event Table button
to select On. The event table:
Is similar to a state listing window in a logic
analyzer display,
Allows you to easily view the contents of
every packet captured in the acquisition to
trace system activity,
Includes timestamps for each packet.
This makes taking relative timing
measurements easy.
Provides an easy way to view a lot of data
on on e screen.
15. Push the side-bezel menu Event Table button
to select Off.
Event Table
On |
Off
16. There is more to the Tektronix 4000 Series
serial solution than just d ecoding and bus
waveforms. There is also triggering and
searching.
Push the front-panel Trigger Menu button.
46 Tektronix 4000 Oscilloscope Demo Instruction Manual
