Tektronix MSO44 Instructions

How to sanitize a nonfunctional instrument
Remove the Processor
board
1.

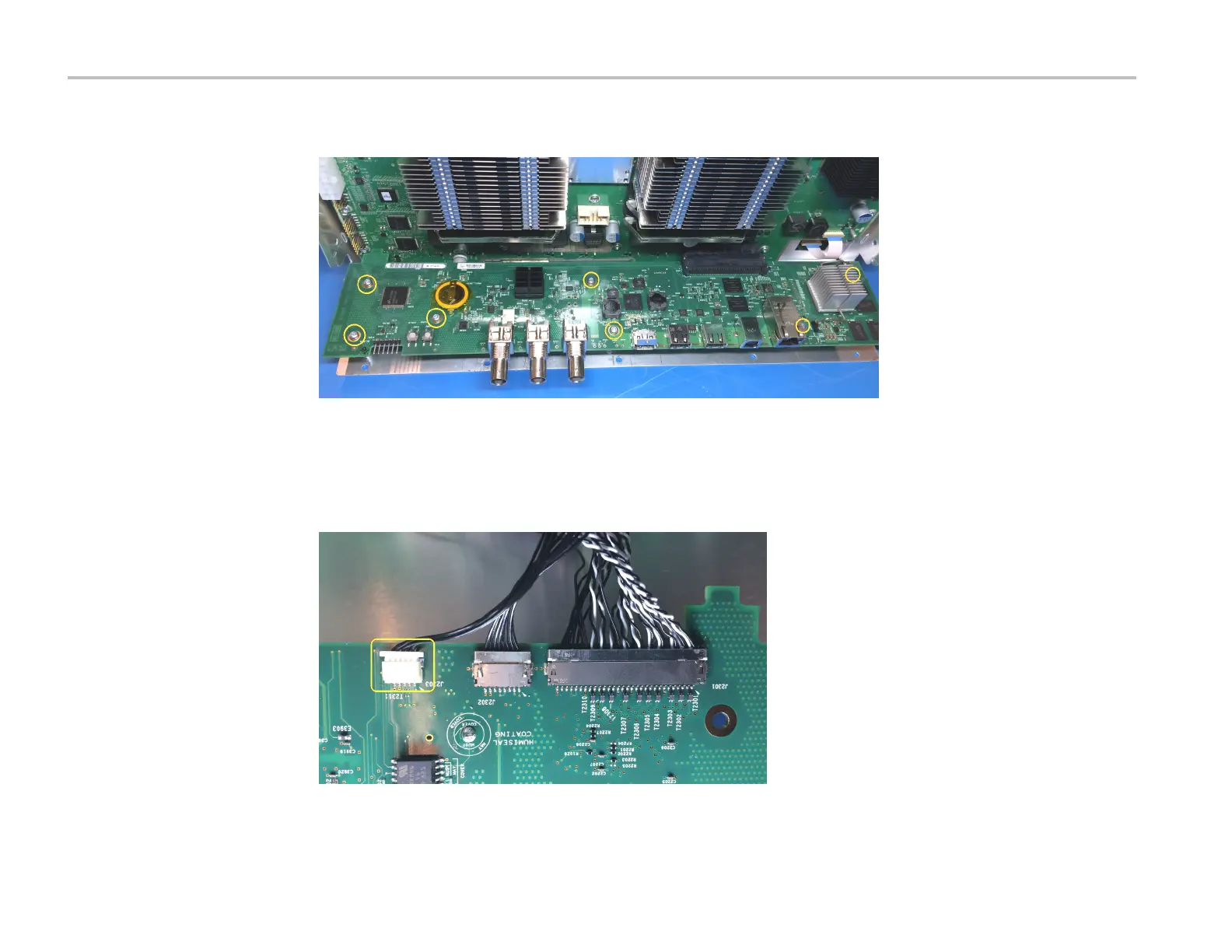

Use a Torx T-10 screwdriver to remove the seven (7) screws from the Processor board.
2.
Lift and pull the Processor board away from the chassis. It is still connected with cables, so be careful to not pull it
too far.
3.
Carefully rotate the Processor board 180° counterclockwise to get access to the cable connectors.
4.
Disconnect the small white plastic cable connector.
12 4 Series MSO Opt. 4–SEC Declassification and Security Instructions

Tektronix MSO44 Specifications

General

Bandwidth	200 MHz, 350 MHz, 500 MHz, 1 GHz
Analog Channels	4
Operating Temperature	0 °C to +50 °C
Sample Rate	6.25 GS/s
Record Length	62.5 Mpoints
Input Impedance	1 MΩ ±1%, 50 Ω ±1%
Vertical Resolution	12 bits
Waveform Capture Rate	Up to 500, 000 wfm/s
Maximum Input Voltage	5 VRMS (50 Ω)
Probe Interface	TekVPI
Digital Channels	16 (optional)
