How to sanitize a nonfunctional instrument

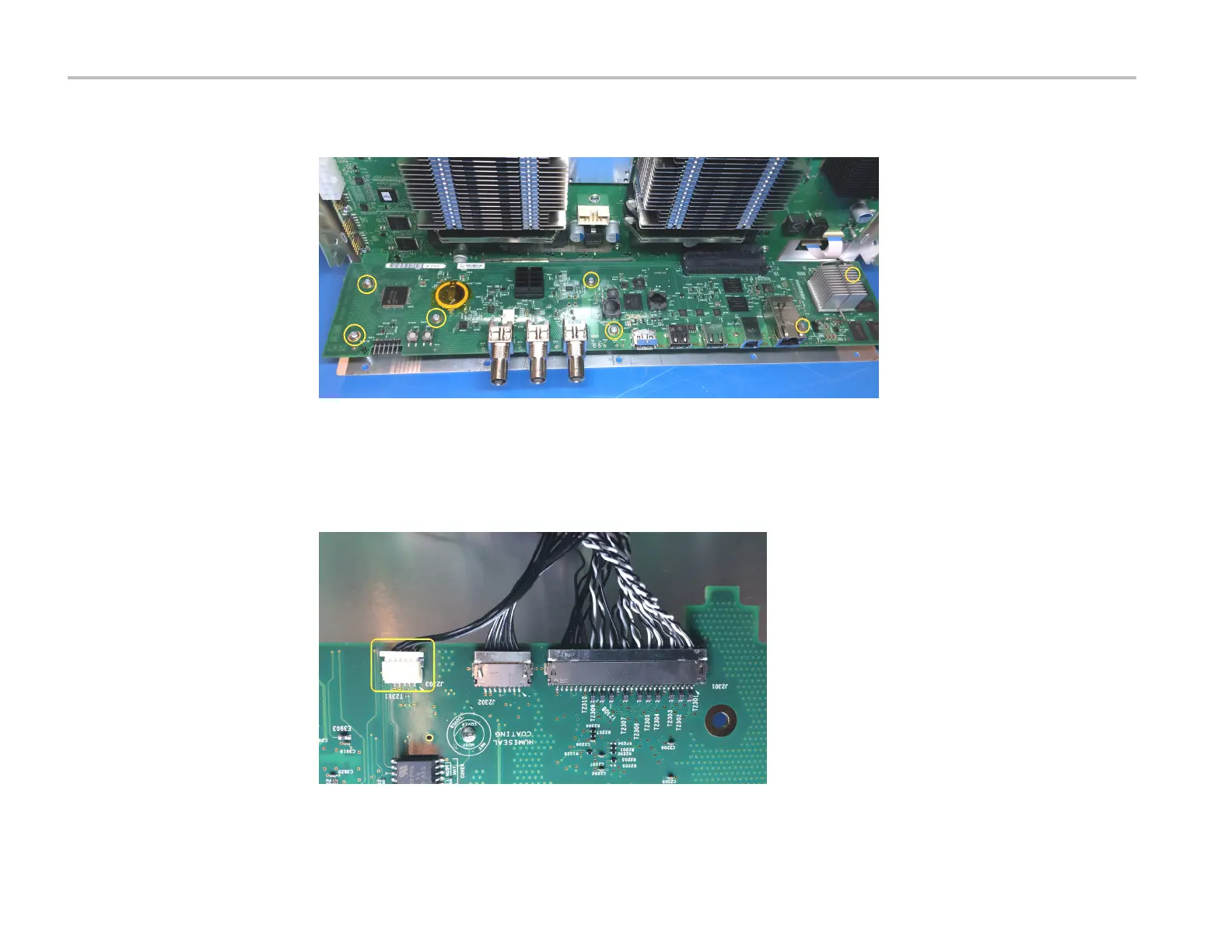

Remove the Processor
board
1.
Use a Torx T-10 screwdriver to remove the seven (7) screws from the Processor board.
2.
Lift and pull the Processor board away from the chassis. It is still connected with cables, so be careful to not pull it
too far.
3.
Carefully rotate the Processor board 180° counterclockwise to get access to the cable connectors.
4.
Disconnect the small white plastic cable connector.
12 4 Series MSO Opt. 4–SEC Declassification and Security Instructions
