2.

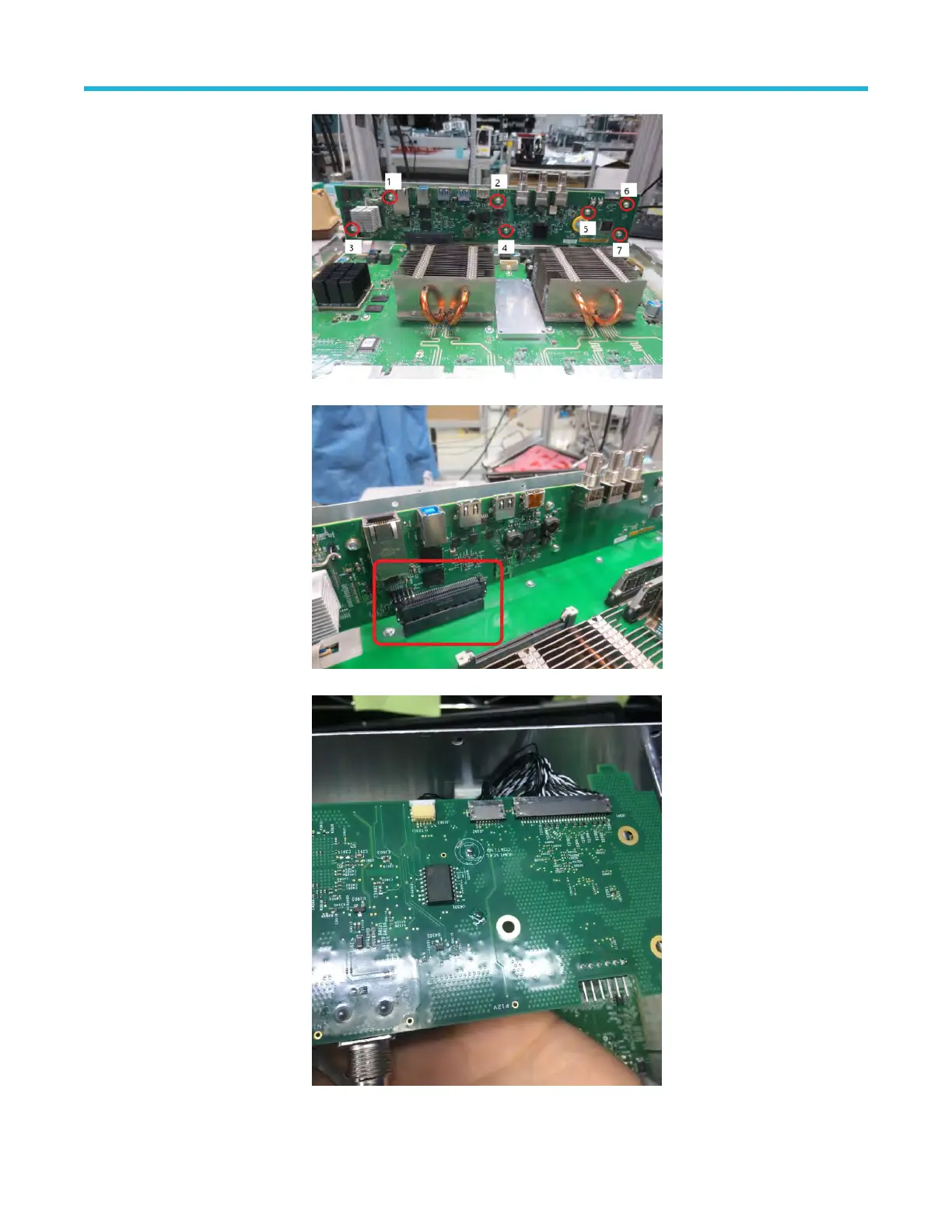

Carefully disconnect the processor board from the main board.
3.
Disconnect the display cable from the processor board as shown below
.
4.
T
o reinstall, reverse the above steps. Tighten the T
-10 T
orx screws to 0.65 N·m when reinstalling.
Maintenance
4 Series MSO (MSO44, MSO46) Service
29
28
30
Table of Contents
Table of Contents
3
List of Figures
5
List of Tables
6
Important Safety Information
7
General Safety Summary
7
Service Safety Summary
10
Terms in the Manual
10
Terms on the Product
10
Symbols on the Product
10
Preface
11
Supported Products
11
Replaceable Parts
11
Where to Find Operating Information
11
Theory of Operation
12
Power Supply
12
Processor Board
12
Main Board
12
Figure 1: 4 Series MSO Block Diagram
12
Front Panel and Display
13
Adjustment Procedures
14
Adjustment
14
Adjustment Interval
14
Adjustment after Repair
14
Maintenance
15
Preventing ESD
15
Inspection and Cleaning
15
Exterior Cleaning (Other than Dissplay)
15
Flat Panel Display Cleaning
16
Interior Cleaning
16
Table 1: External Inspection Checklist
16
Lubrication
17
Returning the Instrument for Service
17
Removal and Replacement Procedures
17
Table 2: Internal Inspection Checklist
17
Removal/Replacement Procedures
18
Required Equipment
18
Table 3: Required Equipment for Removal and Replacement
18
Troubleshooting
30
Service Level
30
Check for Common Problems
30
Equipment Required
30
Troubleshooting Flow Chart
30
Table 4: Failure Symptoms and Possible Causes
30
Instrument Self Tests
31
Figure 2: Primary Troubleshooting Tree
31
Software Updates
32
After Repair
32
Using the Replaceable Parts List
33
Table 5: Parts List Column Descriptions
33
Replaceable Parts
33
Parts Ordering Information
33
Module Servicing
33
Abbreviations
33
Rear Case Assembly with Handle and Feet
34
Figure 3: Rear Case Assembly with Handle and Feet Exploded View
34
Table 6: Rear Case
35
Front Assembly
36
Figure 4: Front Assembly Exploded View
36
Table 7: Front Assembly
37
Rear Chassis Assembly with Power Supply and Fans
38
Figure 5: Rear Chassis Assembly with Power Supply and Fans - Exploded View
38
Table 8: Rear Chassis Assembly with Power Supply and Fans
39
Front Assembly (Backside)
40
Figure 6: Front Assembly (Backside) Exploded View
40
Table 9: Front Assembly (Backside)
41
Front Chassis Assembly with Acqusition Board and Processor Board
42
Figure 7: Front Chassis Assembly with Acqusition Board and Processor Board- Exploded View
42
Table 10: Front Chassis Assembly with Acqusition Board and Processor Board
42
