Acquisition

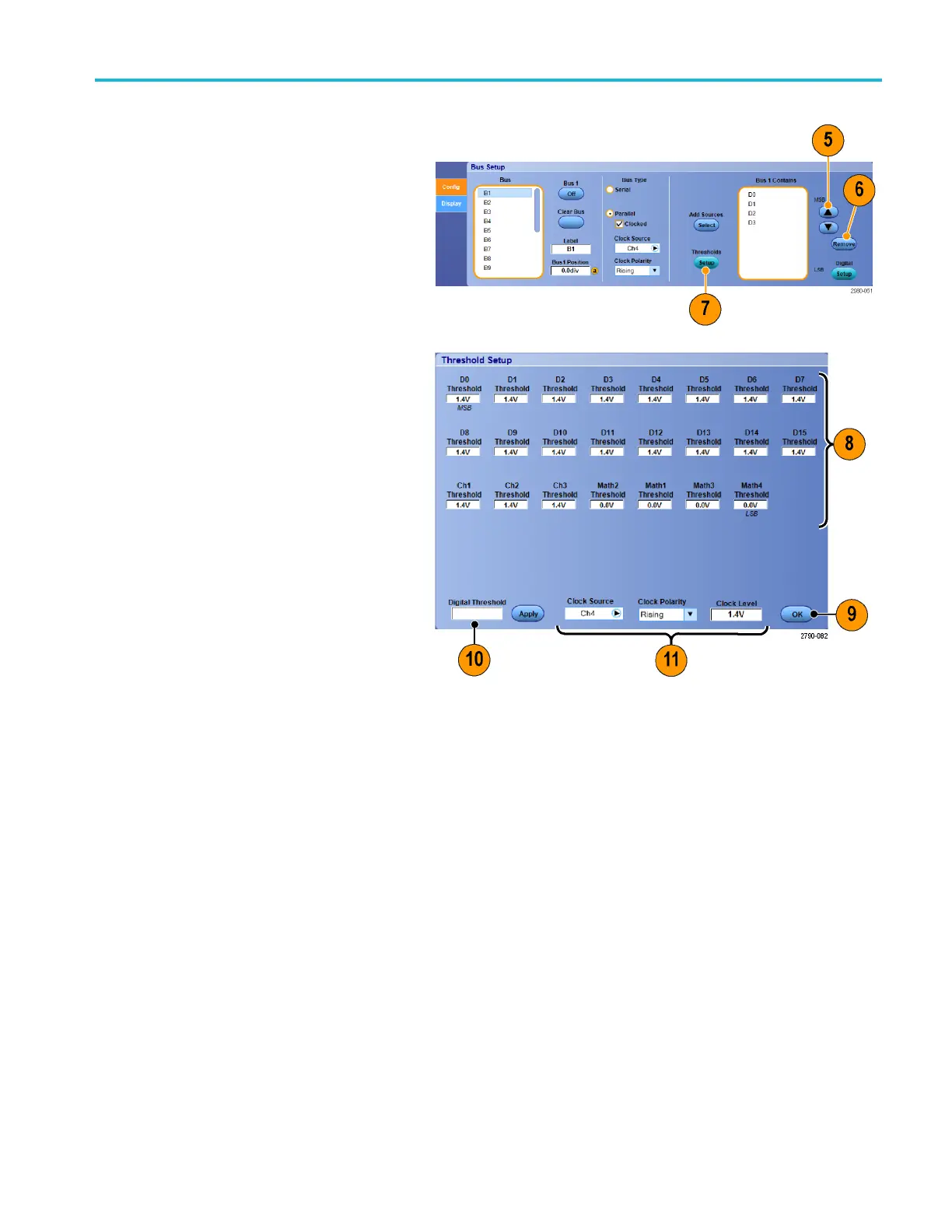

5. To move a channe
l within the bus, scroll
to and select the channel you want to
move, and then click the up or down
arrow buttons
.
6. Toremoveacha
nnel within the bus,
scroll to and select the channel you want
to remove, and then click the Remove
button.
7. To set channe
l thresholds, click the
Thresholds Setup button.
8. For each threshold you want to set,
double click the channel Threshold, and
enter the threshold using the keypad or
multipurpose knobs.
9. When the desired thresholds have been
set, click the OK button.
10. To set all channels to the same threshold,
double click Digital Threshold and use
the keypad to enter a threshold. Then
click Apply.
11. On MSO70000C/DX instruments, to set
the clock source and polarity, double click
the item and select from the displayed
list. To set the clock level, double click
the C lock Level, and enter the level using
the keypad or multipurpose knobs.
MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 57
