Front panel and display

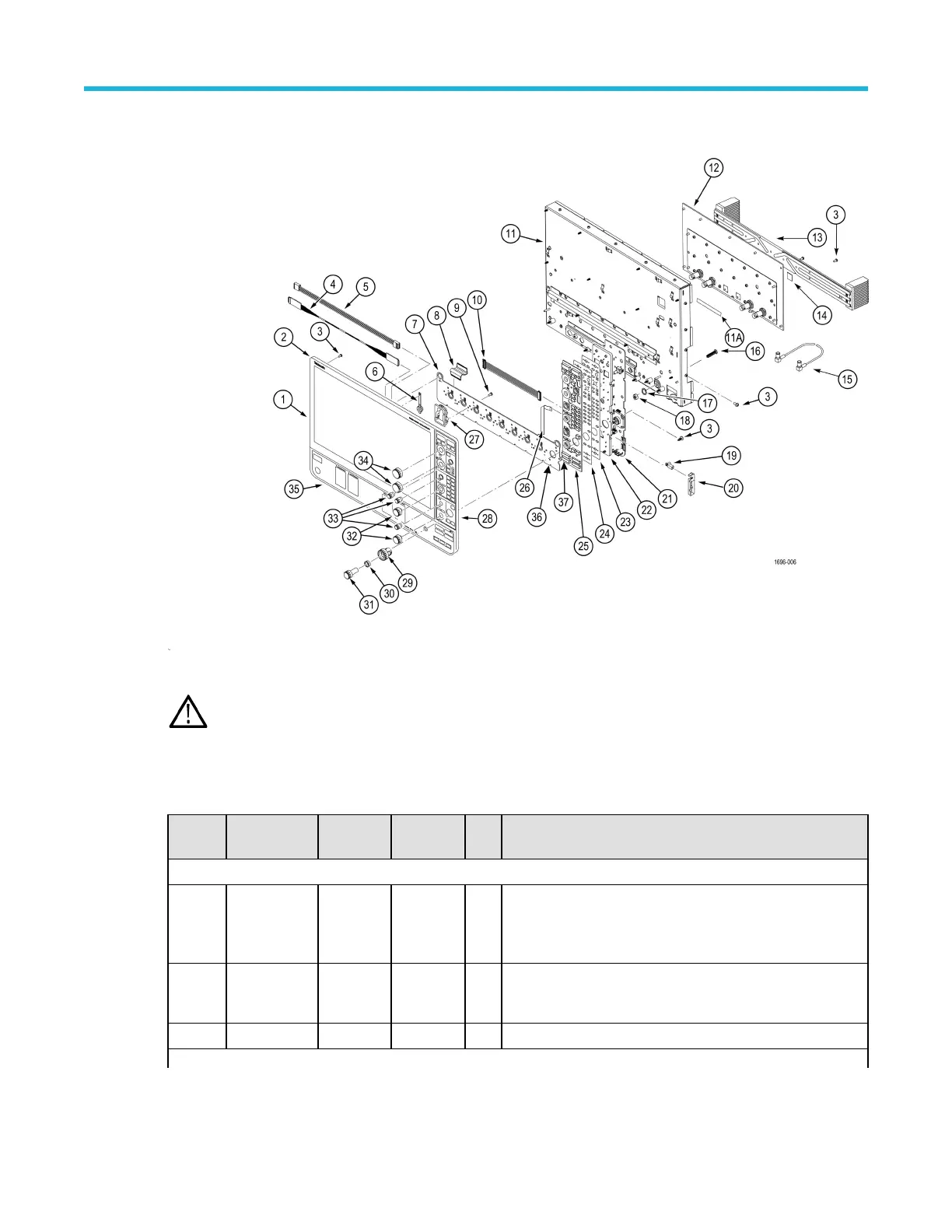

Figure 8: Front panel and display exploded view
Note:
None of the components listed are user-replaceable except for front panel knobs and the front panel label. Return
the instrument to your nearest T
ektronix Service Center to repair or replace any internal components or assemblies
in this diagram.
Table 10: Front panel and display
Index
number
Tektronix
part number
Serial no.
effective
Serial no.
discont'd
Qty Name & description
Figure 8: Front panel and display exploded view on page 34
-1 065-1073-XX 1 MODULE ASSY;SERVICE REPLACEMENT;1198992XX
DISPLA
Y W/ MECHANICALS, MSO6XB
Return the instrument to Tektronix for service.
-2 202-0582-XX 1 CASE, FRONT
Return the instrument to Tektronix for service.
-3 211-1584-XX 55 SCREW, MACHINE, M3 X 0.5 X 6MM PAN HEAD, TORX T10
Table continued…
Replaceable parts
6 Series B MSO MSO64B, MSO66B, MSO68B Service 34
