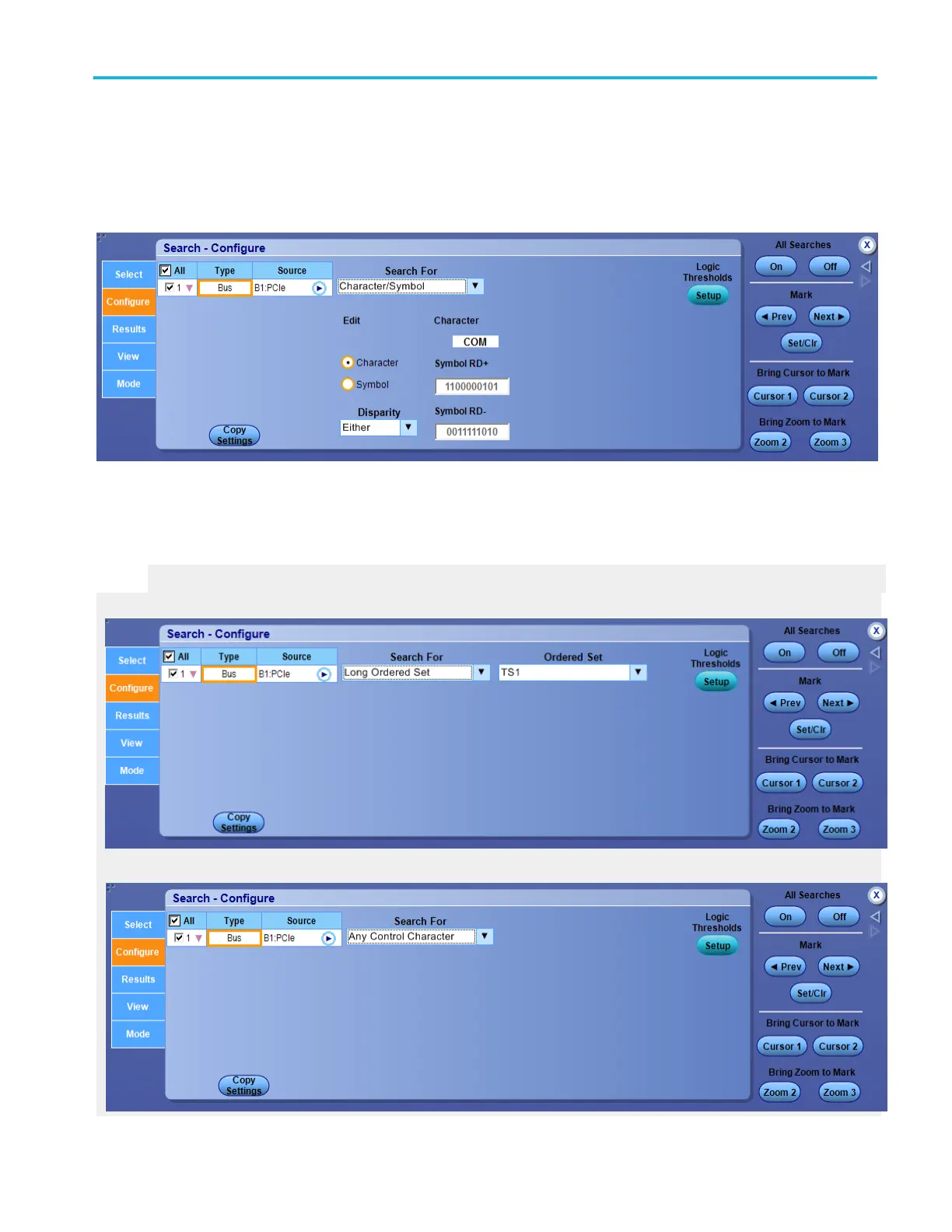

For some Search For selections, you must set additional fields to define other parameters such as for Character/Symbol.

In this example, you need to set a Character, Symbol, and Disparity.

Click the Search For selections Long Ordered Set, Any Control Character, or Error, to view their parameters.

What do you want to do next?

Bus setup control window (Config tab) on page 107Bus setup control window (Config tab) on page 107

Search for long ordered set

Search for any control character

Analyzing waveforms

DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 339
