Behavior. The maximum length of time you can leave the readouts highlighted is 5 seconds.
The following readouts are highlighted:
■
Vertical Scale
■
Horizontal Delay
■
Trigger Level
■
Trigger Source
■
Trigger Slope
■
Source Termination
What do you want to do next?
Learn about setting up prompts for certain controls.
Learn about setting user preferences for trigger level presets.
User preferences (Measurement annotation)

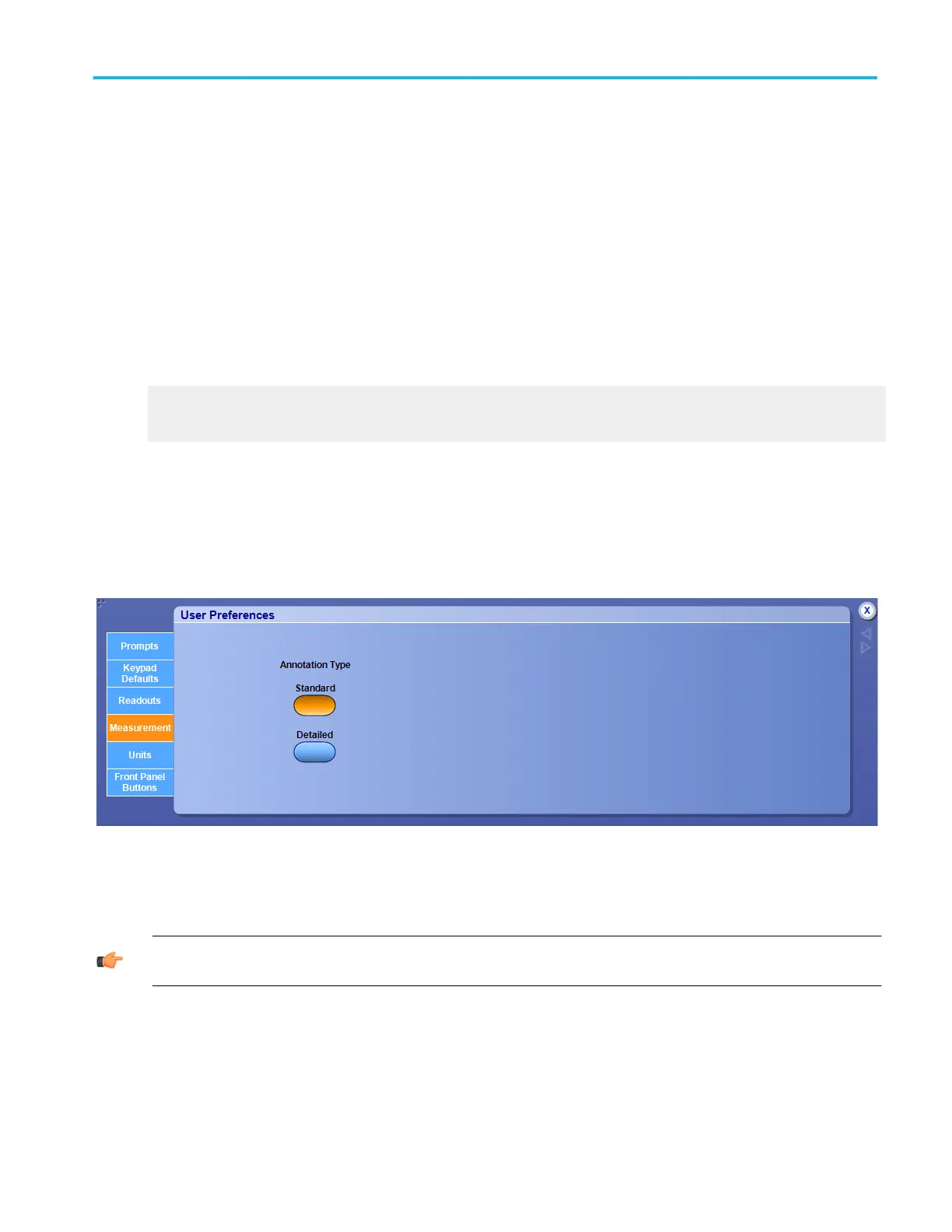

From the Utilities menu, select User Preferences; then open the Measurement tab.
Overview. Use the Measurement tab to set the user preference for measurement annotation. Annotations show the exact
segment of the waveform from which the measurement is derived.
To use. Click a button to select the annotation type, Standard or Detailed.
Behavior. The annotation types consist of horizontal bars, vertical bars, horizontal arrows, or vertical arrows.
TIP. You can access this feature, or turn the feature off, from the Measure menu. Select Measure > Annotation; then select
Standard, Detailed, or Off.
