Pinpoint trigge

Triggering on a s erial bus

Locate proble

ms by triggering on a serial bus. S erial buses are available on MSO/DPO70000DX, MSO/DPO70000C, D PO7000C,

MSO5000B, and DPO5000B Series instruments. Digital channels can be used in bus deﬁnitions on MSO instruments.

Setupaserial

bus. (See page 53, Setting up a bus.)

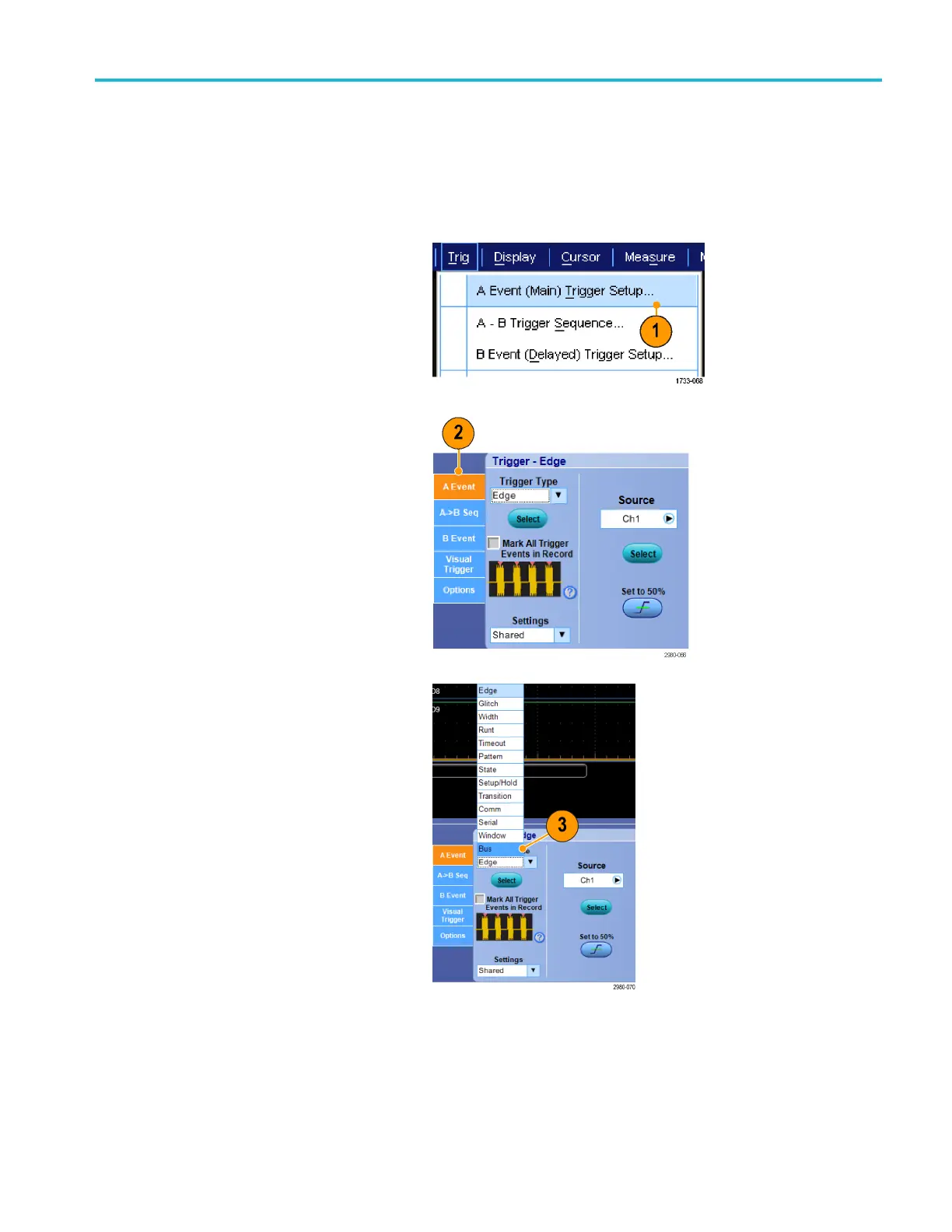

1. Select Trig >

A Event (Main) Trigger

Setup....

2. Select the A Event tab.

3. Select the Bus Trigger Type.

MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series User Manual 83
