Analyzing wavef

orms

Using Spectral Analysis

Use the following procedure for predeﬁned spectral math expressions. See the online help for more information.

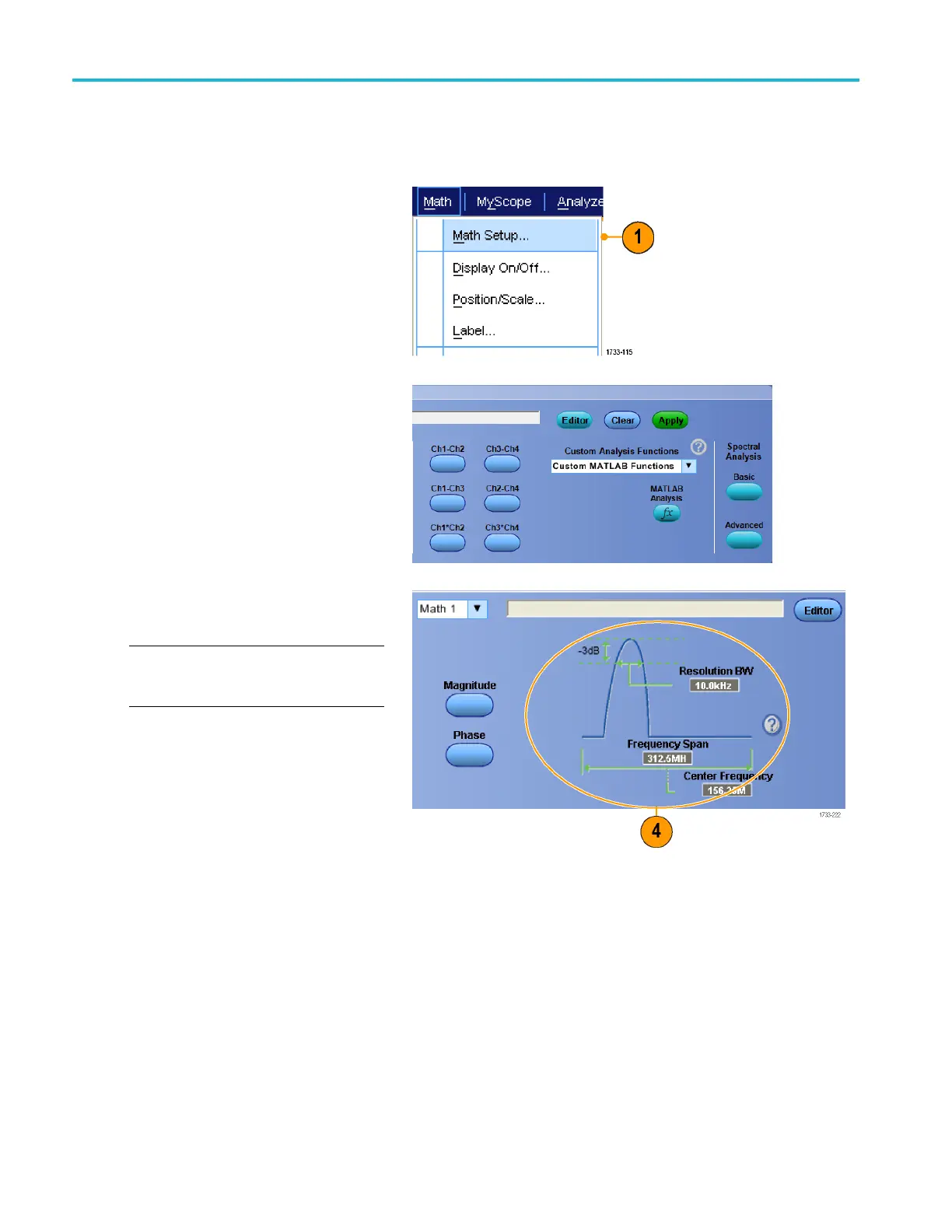

1. Select Math > Math Setup... .

2. Choose one of the predeﬁned spectral

math expressions.

3. Click Basic.

4. Click R

esolution BW or Frequency Span

and use the keypad or the multipurpose

knobs to adjust the spectral display.

NOTE. R

esolution BW and Frequency Span

are only adjustable in Manual Horizontal

Mode.

132 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
