Analyzing wavef
orms

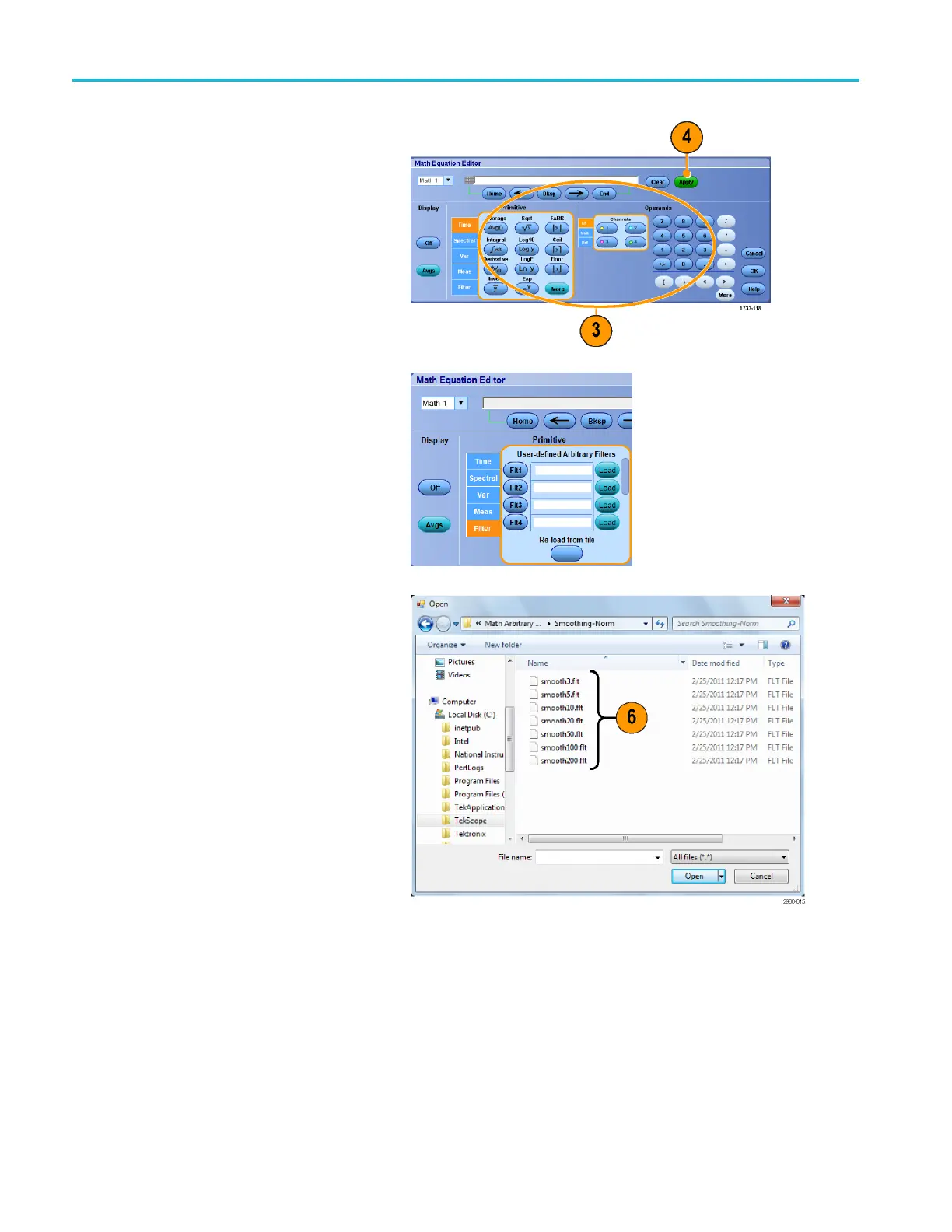

3. Build your advanced math waveform
expression using sources, operators,
constants, me
asurements, variables,
and functions.
4. When you have defined the expression
to your satisfaction, click Apply.
5. To add your
own filter, c lick the Filter
tab. Click Load.
6. Double click the folder for the filters you
want to use. Double click the filter you
want to use.
130 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
