MyScope

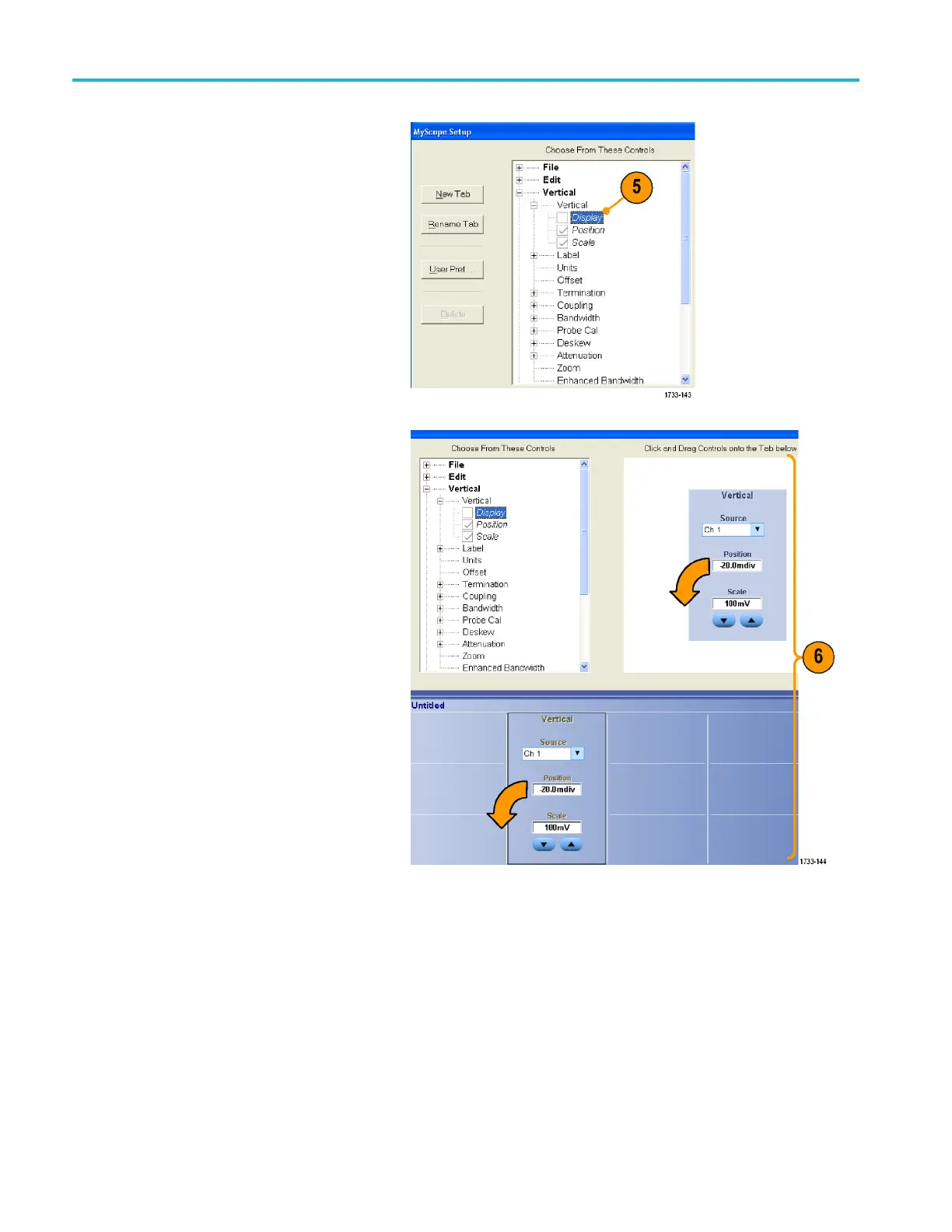

5. Clear the check boxes to remove any
components that you do not want
included in th
e control.
6. Click and drag the c ontrol to your
MyScope co
ntrol window. The control
will snap to the nearest grid location
when you release the mouse. Change
the place
ment of the control in your
MyScope control window by clicking and
dragging.
148 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
