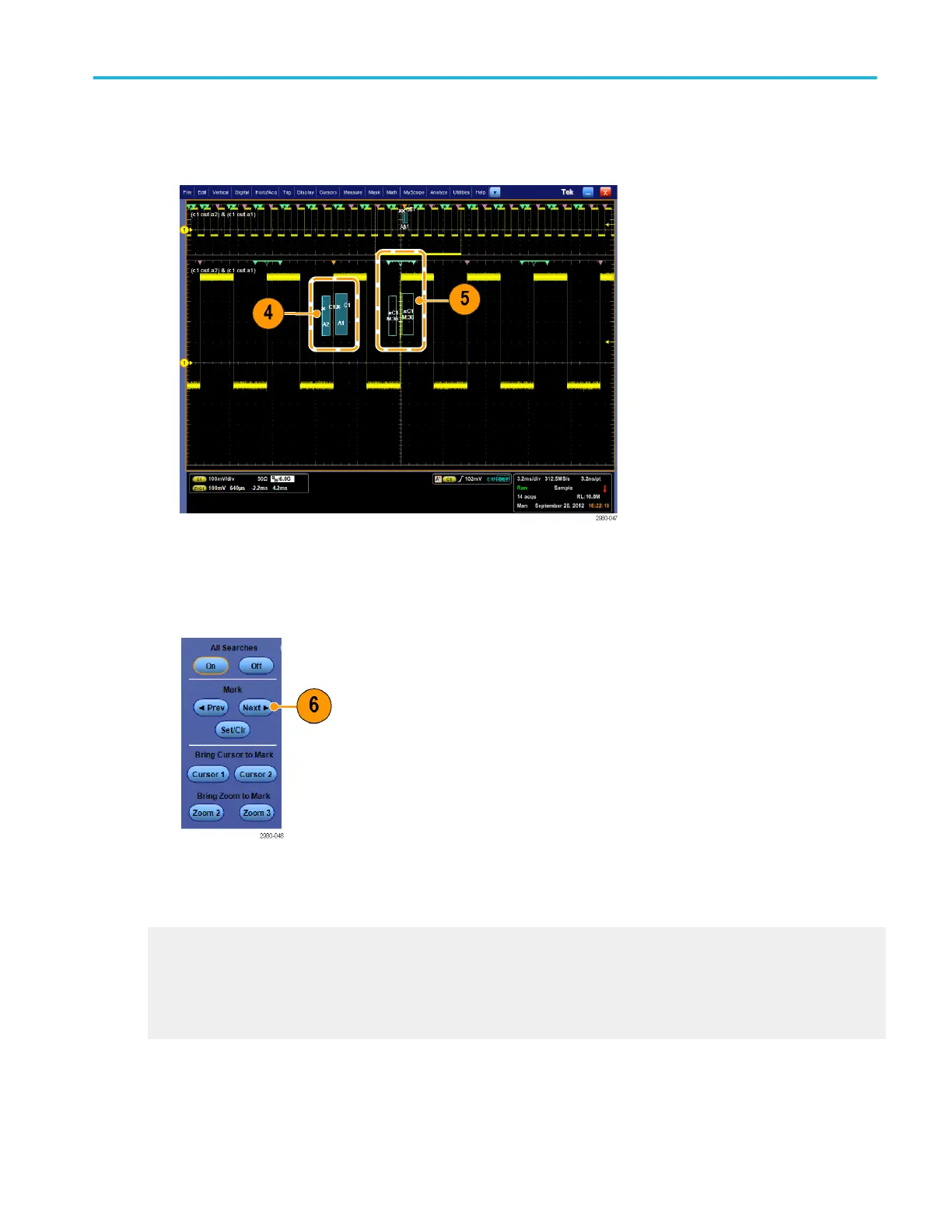

5. Visual Search areas are displayed in green.

6. Only the active visual search area is displayed. Press the Mark Next and the Mark Prev buttons to move the active area to

other visual search areas. Active search areas only appear in the zoom window.

Use the other Analyze Search control windows to control or view the results of the Visual Search.

What do you want to do next?

Learn about bus setups.

Learn about trigger setups.

Learn about setting up a Visual Trigger.

Learn about setting up a search.
