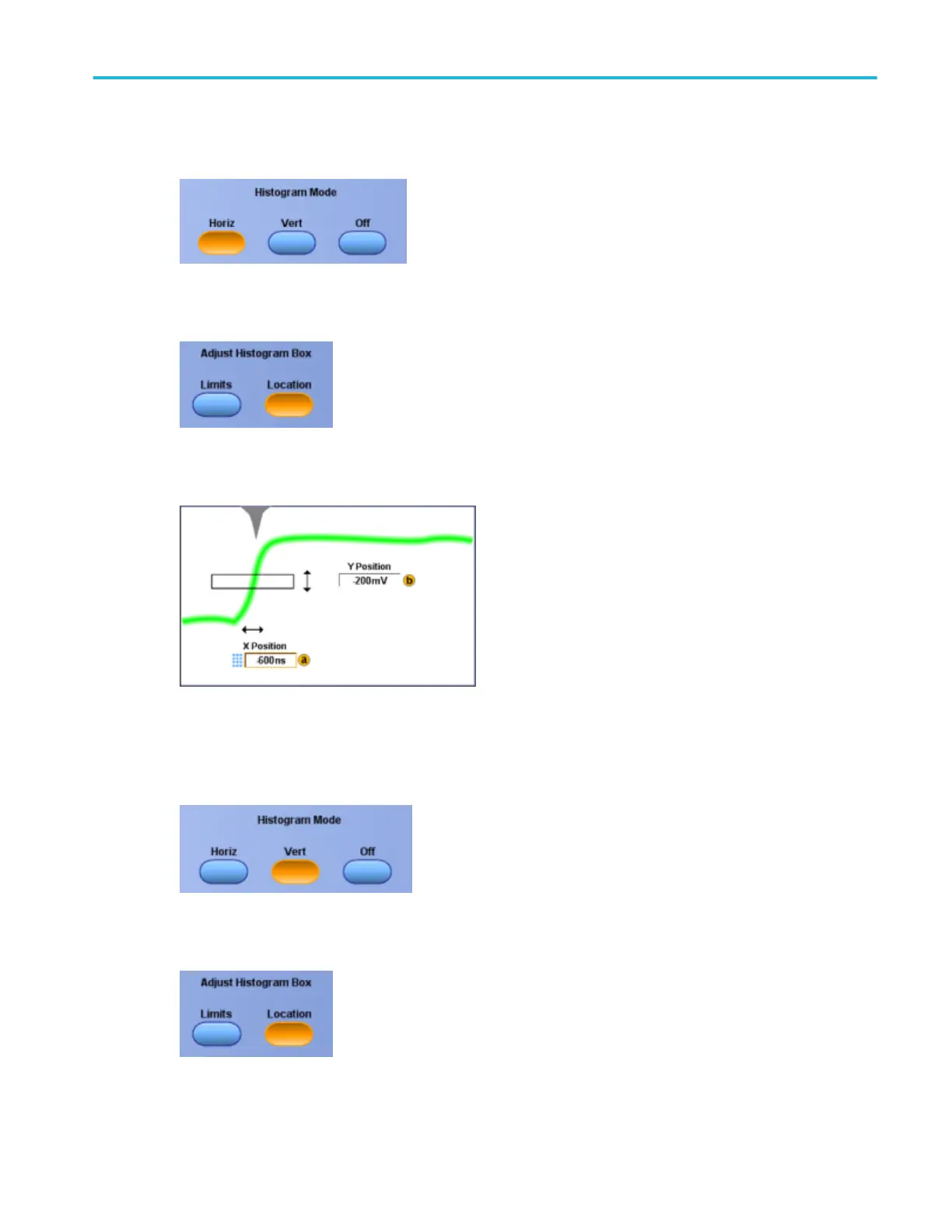

Histogram box location - horizontal

1. Select a mode:

2. Specify the adjustment:

3. Enter limits:

Histogram box location - vertical

1. Select a mode:

2. Specify the adjustment:

Oscilloscope reference

DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 765
