Vertical setups

Set up vertical controls

From the Vertical menu, select Vertical Setup.

Overview

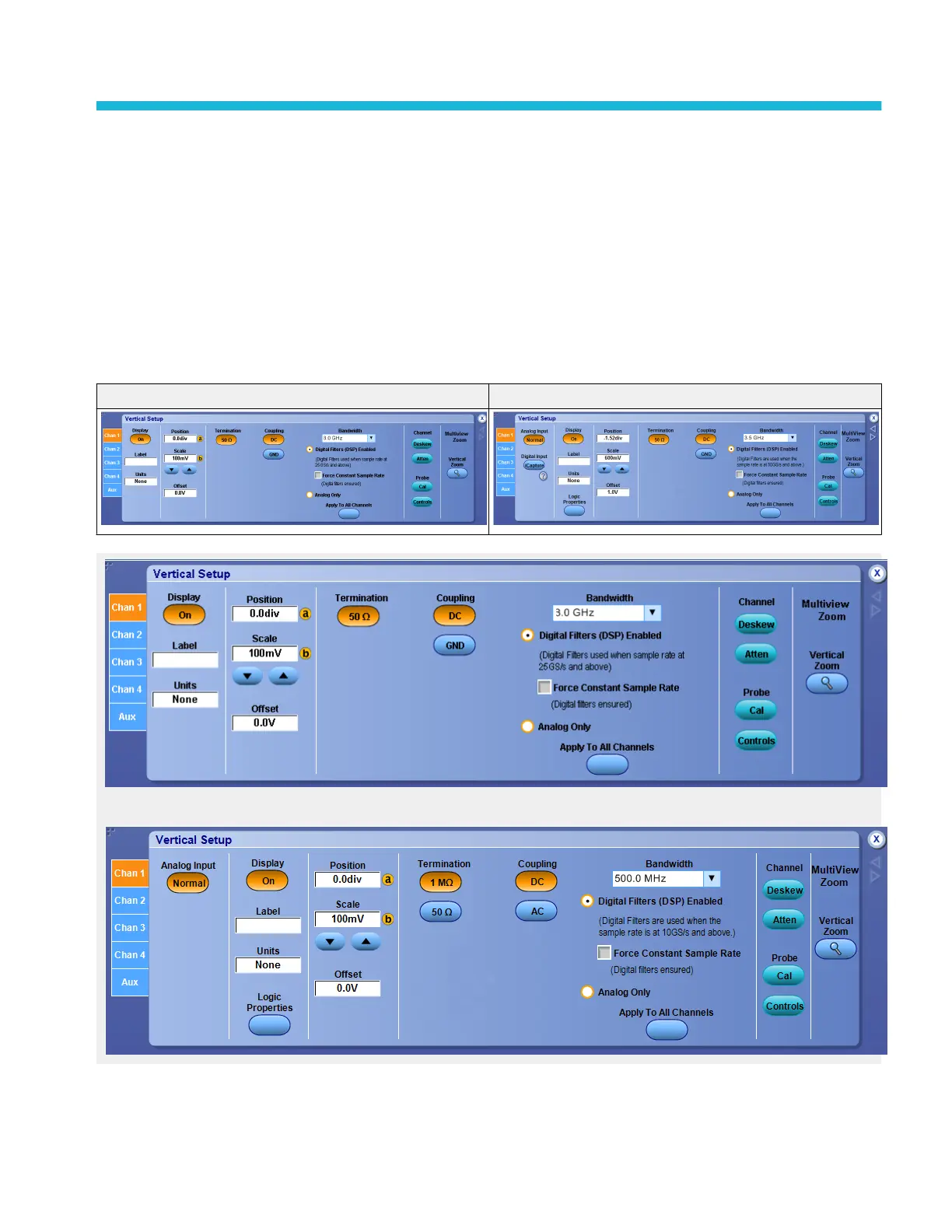

Use the Vertical Setup control windows to set vertical parameters for live (channel) waveforms. The example windows below do

not show controls for attached probes.

Click for DPO7000C and MSO/DPO5000B Series instruments Click for MSO/DPO70000C/DX/SX Series instruments

The following screen appears on MSO/DPO5000B Series instruments:

DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 479
